Products

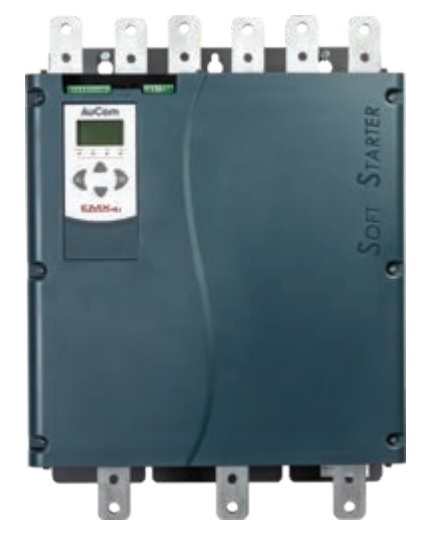

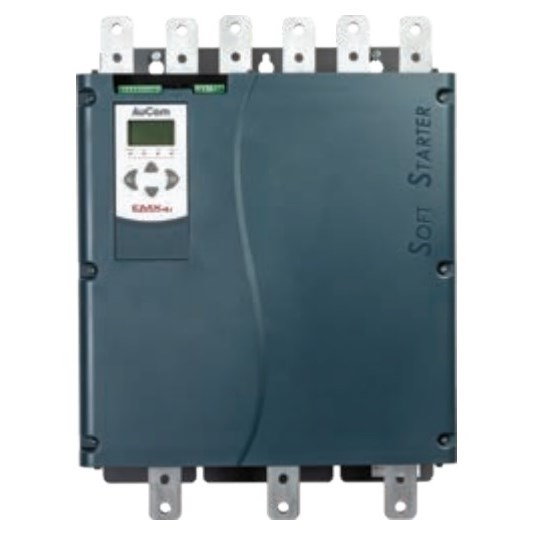

AuCom EMX4i0202EV12C2H Advanced Smart Softstarter 202A 1000/1200VAC 24VAC/DC IP00

Product Code: EMX4i0202EV12C2H

  • Advanced Smart EMX4i with XLR-8 Adaptive Control
  • Rated for 1000/1200 VAC, 24 VAC/DC, 202 A
  • Offers multiple starting & stopping modes
  • Compact size: 447mm W x 662mm H x 306mm D
  • Complies with IEC 60947-4-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
No
Rated Control Supply Voltage (Us)
24 VAC/DC
Rated Current Ie - Heavy Duty
202 A
Rated Current Ie - Normal Duty
202 A
Rated Operational Voltage (Ue)
1000/1200 VAC
Control Features
Current Ramp, Voltage Ramp, Adaptive Control (Torque control), Kick Start
Rated Frequency
50-60 Hz

Dimensions & Physical Data

Depth
306 mm
Height
662 mm
Weight
62 kg
Width
440 mm

Environmental

IP Rating
IP00
Ambient Temperature
-10 °C - 60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2/ GB 14048.6 / C22.2 No. 60947-4-2/ 60947-4-3

Description

<p>AuCom EMX4i0202EV12C2H Advanced Smart Softstarter 202A 1000/1200VAC 24VAC/DC IP00</p>

Documents

IPD Product Catalogue V17
