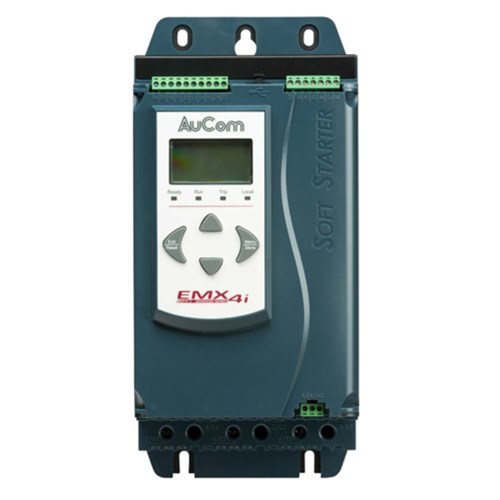

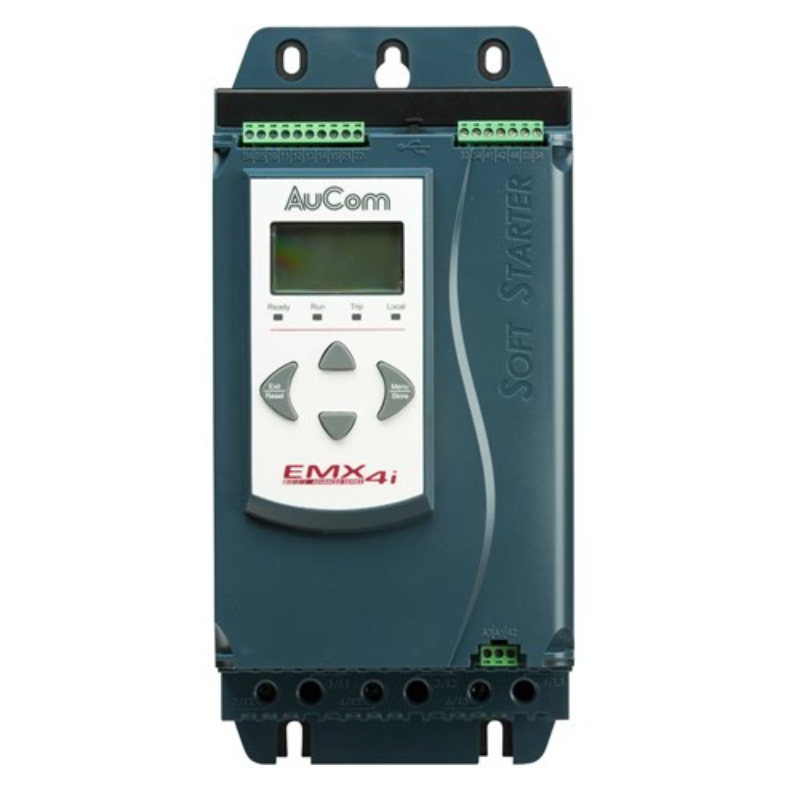

AuCom EMX4i0064BV5C1H Advanced Smart Softstarter 64A 200-525VAC 110/240VAC IP20

Product Code: EMX4i0064BV5C1H

  • Supports 200-525 VAC, 110/240 VAC
  • Handles up to 64 A current
  • IP20 protection rating
  • XLR-8 Adaptive Control function
  • Multiple start and stop modes
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
Internally bypassed
No. of N/O Contacts
3
No. of Poles (Total)
1 changeover + 3 NO
Rated Control Supply Voltage (Us)
110-120 VAC & 220-240 VAC
Rated Current Ie - Heavy Duty
60
Rated Current Ie - Normal Duty
64
Rated Operational Voltage (Ue)
200 VAC ~ 525 VAC
Built-in Communication
No,Via expansion cards
Control Features
Adaptive Control, Constant Current, Current Ramp,Pump Clean, Reverse direction, Jog,Soft stop methods (TVR, coast, DC brake, soft brake),Scheduled auto start/stop,Protection: overload, current imbalance, voltage, power, thermistor
Rated Frequency
50Hz to 60Hz

Dimensions & Physical Data

Depth
233
Height
336
Weight
4.9
Width
152

Environmental

IP Rating
IP20
Ambient Temperature
-10°C ~ 60°C, above 40°C with derating

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2, GB 14048.6, Lloyds Marine No 1 Specification, Steel Vessel Rules 2013

Documents

IPD Product Catalogue V17
