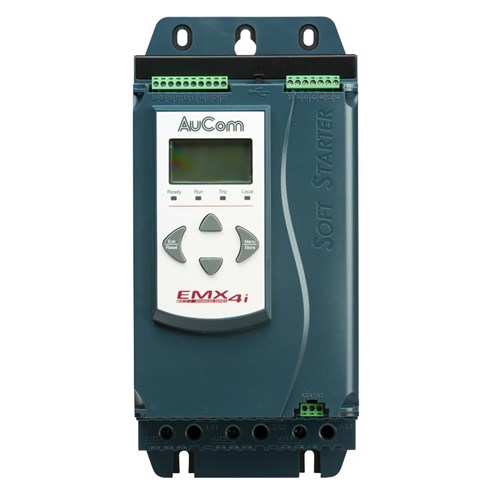

AuCom EMX4i0042BV5C1H Advanced Smart Softstarter 42A 200-525VAC 110/240VAC IP20

Product Code: EMX4i0042BV5C1H

  • Advanced Smart EMX4i series for efficient control
  • Supports 200-525 VAC, 110/240 VAC voltage ranges
  • Rated current capacity of 42 A
  • Compact size: 152mm W x 336mm H x 231mm D
  • Multiple start and stop modes for flexibility
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
110/240 VAC
Rated Current Ie - Heavy Duty
27 A
Rated Current Ie - Normal Duty
42 A
Rated Operational Voltage (Ue)
200-525 VAC
Control Features
Current Ramp, Voltage Ramp, Adaptive Control (Torque control), Kick Start
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
233 mm
Height
336 mm
Weight
4.8 kg
Width
152 mm

Environmental

IP Rating
IP20
Ambient Temperature
-10 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2; EN 60947-4-2; UL 508

Documents

IPD Product Catalogue V17
