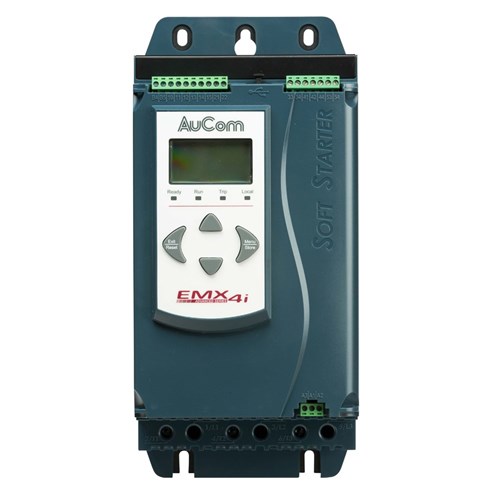

AuCom EMX4i0024BV5C2H Advanced Smart Softstarter 24A 200-525VAC 24VAC/DC IP20

Product Code: EMX4i0024BV5C2H

  • Supports 200-525 VAC, 24 VAC/DC
  • Rated for 24 A current
  • IP20 protection rating
  • XLR-8 Adaptive Control feature
  • Multiple start/stop modes available
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
24V AC/DC
Rated Current Ie - Heavy Duty
16A
Rated Current Ie - Normal Duty
24A
Rated Operational Voltage (Ue)
200V to 525V AC
Control Features
Current Ramp, Voltage Ramp, Adaptive Control (Torque control), Kick Start
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
233mm
Height
336mm
Weight
4.8kg
Width
152mm

Environmental

IP Rating
IP20
Ambient Temperature
-10°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2; EN 60947-4-2; UL 508
