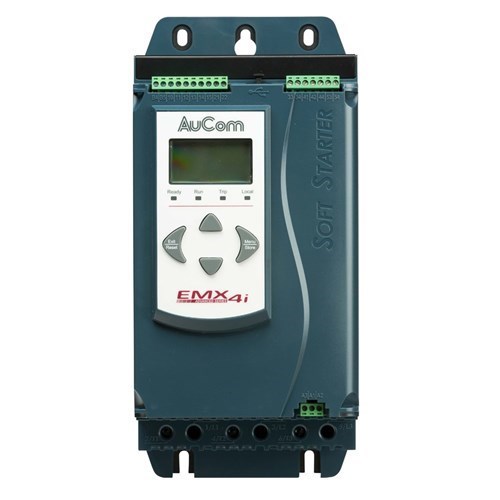

AuCom EMX4i0024BV5C1H Advanced Smart Softstarter 24A 200-525VAC 110/240VAC IP20

Product Code: EMX4i0024BV5C1H

  • Voltage range: 200-525 VAC, 110/240 VAC
  • Current rating: 24 A
  • Compact size: W152 x H336 x D231 mm
  • Protection class: IP20, Pollution degree IP3
  • Multiple start modes incl. Kickstart
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
110/240 VAC
Rated Current Ie - Heavy Duty
16 A
Rated Current Ie - Normal Duty
24 A
Rated Operational Voltage (Ue)
200-525 VAC
Control Features
Current Ramp, Voltage Ramp, Adaptive Control (Torque control), Kick Start
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
233 mm
Height
336 mm
Weight
4.8 kg
Width
152 mm

Environmental

IP Rating
IP20
Ambient Temperature
-10 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2; EN 60947-4-2; UL 508

Documents

IPD Product Catalogue V17
