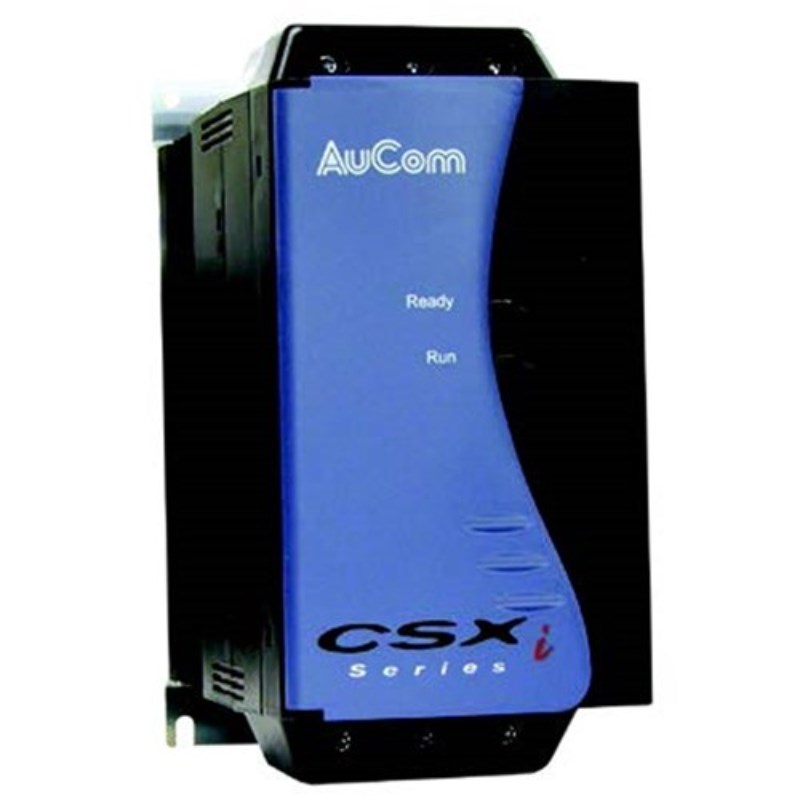

AuCom CSXi055V 4C2 Compact Simple Softstarter 55kW Motor 100A 200-440VAC 24VAC/DC IP20

Product Code: CSXi055V4C2

  • Compact design with 145 mm width
  • Wide voltage range: 200-440 VAC, 24 VAC/DC
  • High current capacity of 100 A
  • Reliable operation from -10 to 60°C
  • Complies with C-Tick, UL, cUL, CE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
Yes
No. of N/C Contacts
0
No. of N/O Contacts
2
Rated Control Supply Voltage (Us)
24 VAC/VDC ±20%
Rated Current Ie - Normal Duty
96
Rated Operational Voltage (Ue)
3~ 200-440 VAC
Built-in Communication
Optional Modbus/Profibus/DeviceNet/Ethernet/IP/Profinet
Control Features
Constant current; Current ramp; Soft stop; Motor protection
Rated Frequency
45Hz to 66Hz
No. of Poles
2 NO

Dimensions & Physical Data

Depth
214
Height
240
Weight
6.8
Width
202mm

Environmental

IP Rating
IP20
Ambient Temperature
-10°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2; EN 60947-4-2; UL 508; GB 14048.6
