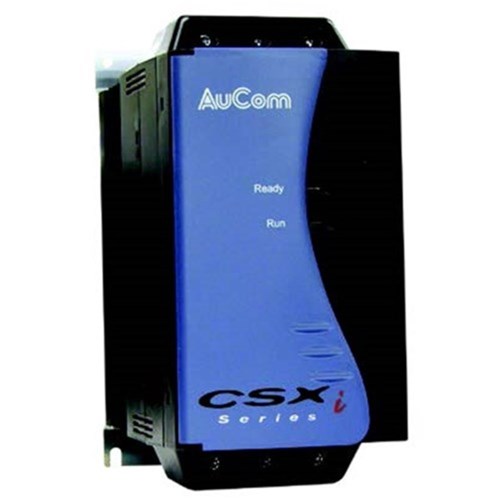

AuCom CSXi037V 4C1 Compact Simple Softstarter 37kW Motor 75A 200-440VAC 110-240/380-440VAC IP20

Product Code: CSXi037V4C1

  • Compact design: 145mm width
  • Wide voltage range: 200-440 VAC
  • High current capacity: 75 A
  • IP20 protection rating
  • Certified by C-Tick, UL, CE
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
110/240 VAC
Rated Current Ie - Heavy Duty
65 A
Rated Current Ie - Normal Duty
75 A
Rated Operational Voltage (Ue)
200-440 VAC
Rated Power at 400V (Pe) - Normal Duty
37 kW
Control Features
Current Ramp
Rated Frequency
45-66 Hz

Dimensions & Physical Data

Depth
193 mm
Height
215 mm
Weight
4 kg
Width
145 mm

Environmental

IP Rating
IP20
Ambient Temperature
-10 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2; EN 60947-4-2; UL 508
