Specifications

Product Type

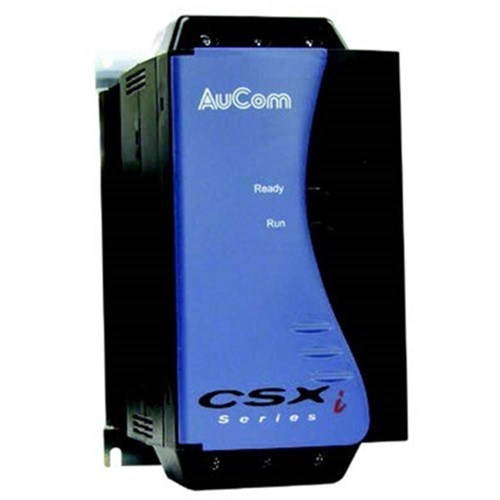

Soft Starter Panel

Brand

AuCom

Built-in Bypass Yes	Rated Control Supply Voltage (Us) 415V AC	Rated Current Ie - Heavy Duty 36A
Rated Current Ie - Normal Duty 42A	Rated Operational Voltage (Ue) 200-440V AC	Rated Power at 400V (Pe) - Heavy Duty 18.5kW
Rated Power at 400V (Pe) - Normal Duty 18.5kW	Built-in Communication No	Control Features Current Ramp
Rated Frequency 45-66Hz

Depth 300mm	Height 600mm	Weight 2.2 Kg
Width 400mm

IP Rating

IP66

Ambient Temperature

-10°C - 60°C

Standards and Approvals

IEC/EN 60947-4-2, GB 14048.6, TP TC 004/2011, TP TC 020/2011, Lloyds Marine No 1 Specification, UL 511

Description

<p>SOFT STARTER PANEL WITH ROOF CANOPY IP66 GREY 18.5kW 415V CONTROL 600mmH x 400mmW x 300mmD</p>
