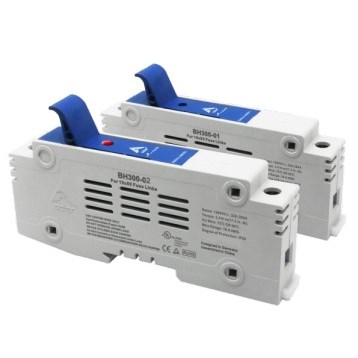

ADLER BH300-01 Fuse Link 32 A 1500VDC For: 10 x 85 Cylindrical Fuse Links

Product Code: BH300-01

  • Accessory for 10x85 cylindrical fuse links
  • Supports up to 32 A rated current
  • Handles voltage up to 1500 VDC
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Holder
Brand
ADLER
Series
BH300
Application
Touch-safe fuse holder for 1500 V DC photovoltaic circuits and equipment

Electrical

Suitable For
10 x 85 mm Fuse link
Breaking Capacity
50kA DC
Rated Current (In)
50A
Rated Voltage (Ur)
1500V DC

Mechanical

Cable Entry
4–18 AWG
Indicators
without indicator
Material
UL 94 V-0 flame-retardant material
Mounting
DIN rail mounting
Size Code
10 x 85 / 14 x 85
Connection/Termination
Screw terminals

Dimensions & Physical Data

Depth
53mm
Height
126.2mm
Width
21.8mm

Environmental

IP Rating
IP20 finger-safe

Safety, Standards & Compliance

Standards and Approvals
UL 4248-19; EN 60947-3
