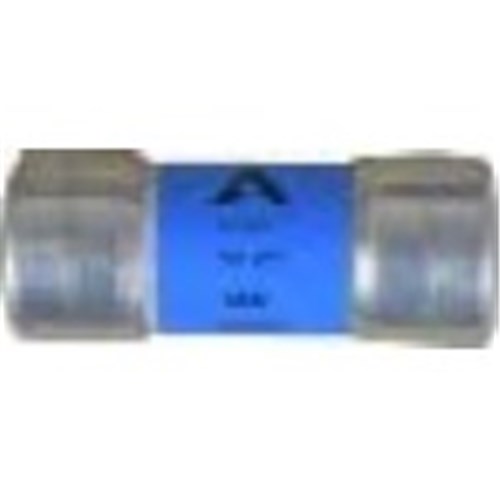

ADLER A942700B00 Cartridge Fuse 70 A 1300VDC 22mm Dia x 58mm Fuse Ferrule Terminal For: BH400 BH401 Fuse Holder

Product Code: A942700B00

  • 70 A current, 1300 VDC voltage rating
  • Compatible with BH400, BH401 holders
  • Ferrule terminal type for secure connection
  • Handles up to 10 kA interrupt rating
  • Compact size: 58 mm length
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photovoltaic Fuse Link
Brand
ADLER
Series
A94
Application
Combiner box, photovoltaic and power storage protection for high-power PV applications.

Electrical

Utilization Category
gPV
Breaking Capacity
10kA @ 1300V DC
Rated Current (In)
70A
Rated Voltage (Ur)
1500V DC
Speed Class
Fast acting

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Material
Glass-fiber body; silver plated caps
Mounting
Cartridge fuse holder
Size Code
22 x 58
Connection/Termination
Ferrule end caps
Fuse Holder
BH400 / BH401

Dimensions & Physical Data

Length
58mm
Weight
0.052kg (Approx.)
Width
Ø 22mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-19; IEC 60269-6
