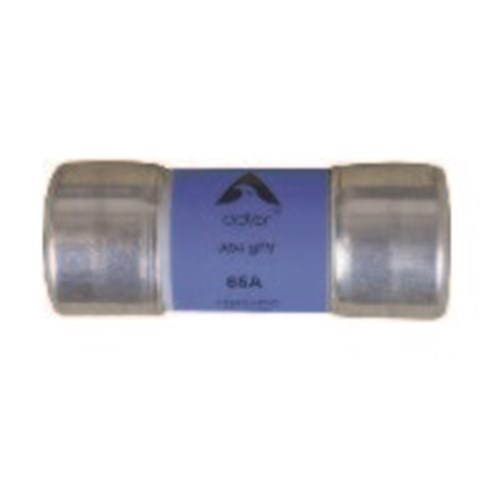

ADLER A942550800 Cartridge Fuse 55 A 1500VDC 22mm Dia x 58mm Fuse Ferrule Terminal For: BH400 BH401 Fuse Holder

Product Code: A942550800

  • 55 A rated current for efficient performance
  • Supports up to 1500 VDC applications
  • Compatible with BH400, BH401 holders
  • Ferrule terminals for secure connections
  • Interrupt rating of 10 kA for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photovoltaic Fuse Link
Brand
ADLER
Series
A94
Application
Combiner box, photovoltaic and power storage protection for high-power PV applications.

Electrical

Utilization Category
gPV
Breaking Capacity
10kA @ 1500V DC
Rated Current (In)
55A
Rated Voltage (Ur)
1500V DC
Speed Class
Fast acting

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Material
Glass-fiber body; silver plated caps
Mounting
Cartridge fuse holder
Size Code
22 x 58
Connection/Termination
Ferrule end caps
Fuse Holder
BH400 / BH401

Dimensions & Physical Data

Length
58mm
Weight
0.052kg (Approx.)
Width
Ø 22mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-19; IEC 60269-6

Documents

IPD Product Catalogue V17
