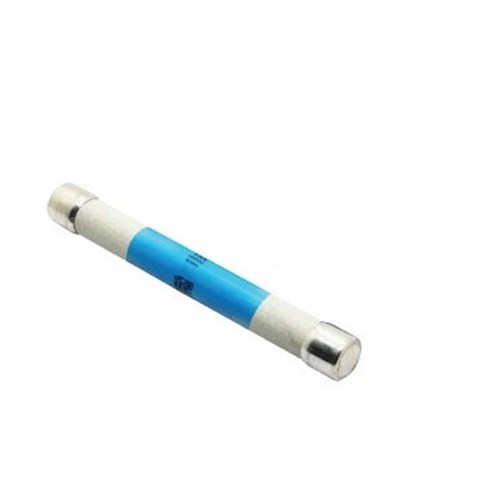

ADLER A852200B00 Cartridge Fuse 20 A 1500VDC 10mm Dia x 85mm Fuse Ferrule Terminal For: BH300-01 BH300-02 Fuse Holder

Product Code: A852200B00

  • 20 A current rating, 1500 VDC voltage
  • Compatible with BH300-01, BH300-02 holders
  • Ferrule terminal type for secure connection
  • High interrupt rating of 30 kA
  • Compact design: 85 mm length
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photovoltaic Fuse Link
Brand
ADLER
Series
A85
Application
PV combiner / junction boxes, inverters, battery charge controllers and power storage protection.

Electrical

Utilization Category
gPV
Breaking Capacity
30kA @ 1500V DC
Rated Current (In)
20A
Rated Voltage (Ur)
1500V DC
Speed Class
Fast acting

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Material
Glass-fiber body; silver plated caps
Mounting
Cartridge fuse holder
Size Code
10 x 85
Connection/Termination
Ferrule end caps
Fuse Holder
BH300-01 / BH300-02

Dimensions & Physical Data

Length
85mm
Weight
0.0125kg (Approx.)
Width
Ø 10mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-19; IEC 60269-6
