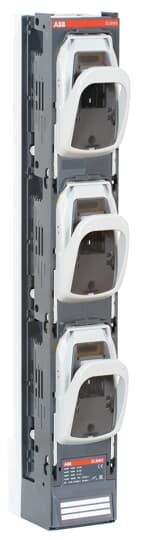

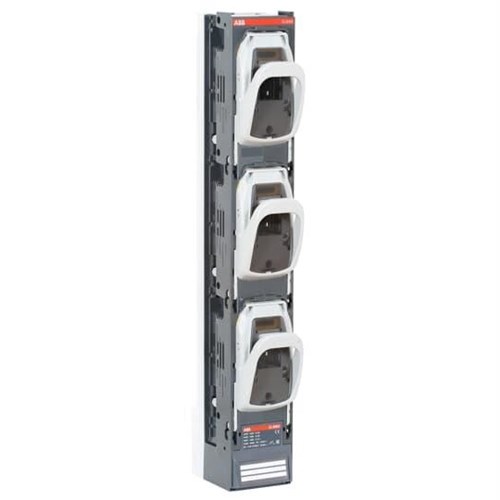

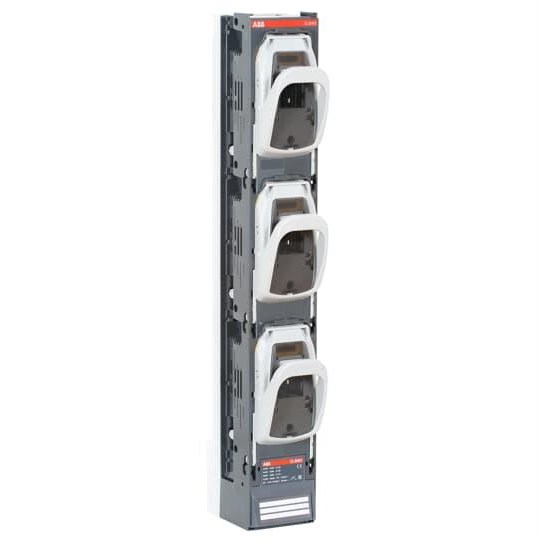

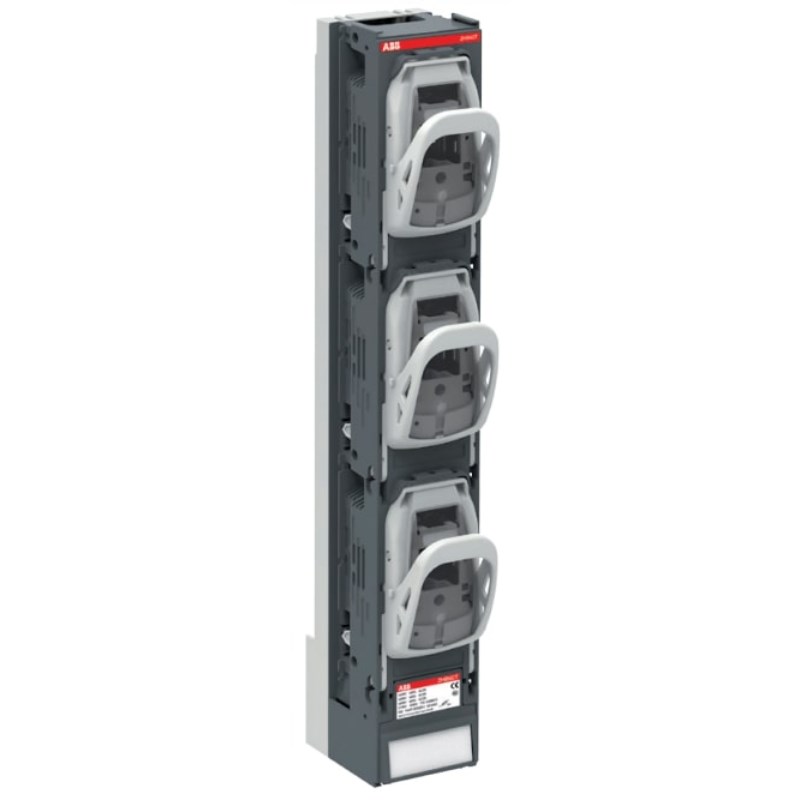

ABB ZLBM3-1P-M12 Strip Fuse Switch 1-P NH3 630A 1000VAC Bolt Terminal IP30 For: NH3

Product Code: ZLBM3-1P-M12

  • Rated for 630 A current
  • Complies with IEC60947-3 standards
  • Operates at 1000 VAC voltage
  • Single pole design, IP30 protection
  • Compatible with NH3 base and fuse size
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
ZLBM
Application
Utilities, infrastructure, manufacturing

Electrical

Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 1000V AC
Rated Operational Current AC21-A (Ie)
630A
Rated Operational Current AC22-A (Ie)
630A
Rated Operational Current AC23-A (Ie)
630A
Power Loss
at Rated Load 97.2W
Rated Current (In)
Main Circuit 630A
Fuse Size
NH3
No. of Poles
3P

Dimensions & Physical Data

Depth
174mm
Height
662mm
Weight
4.65kg
Width
99mm

Environmental

IP Rating
Front IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
