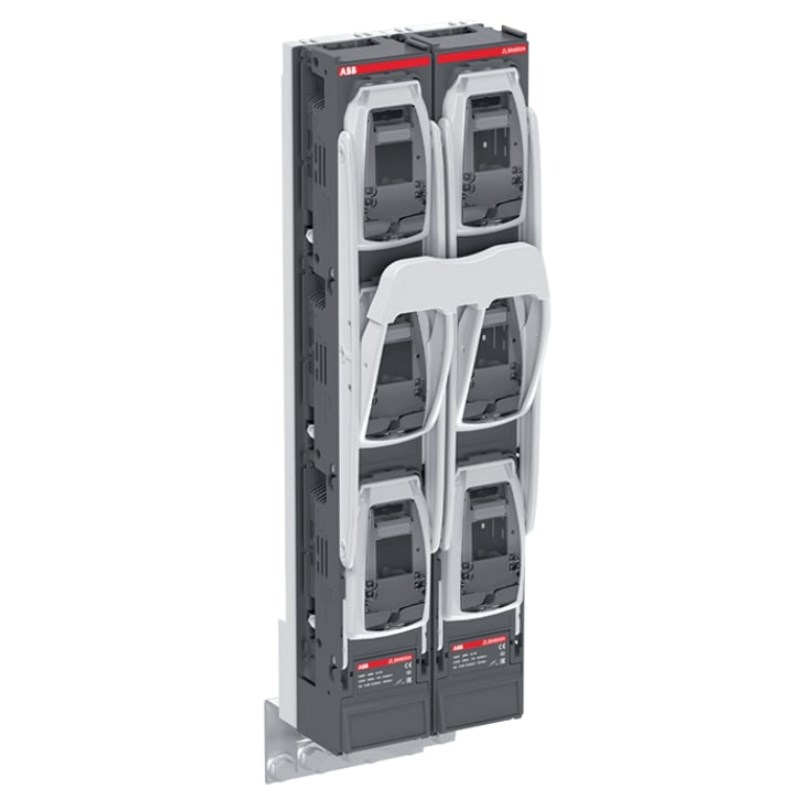

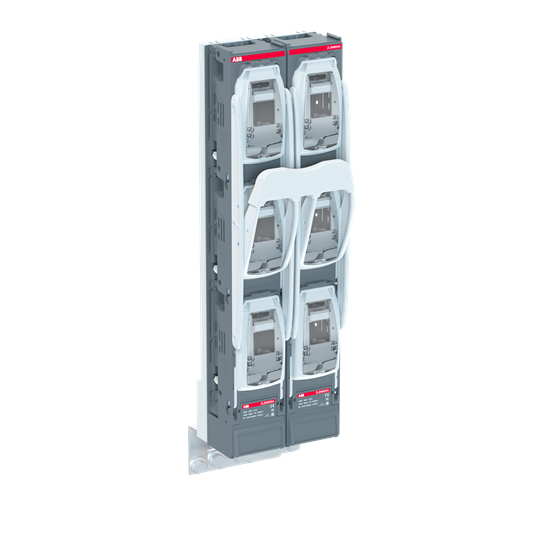

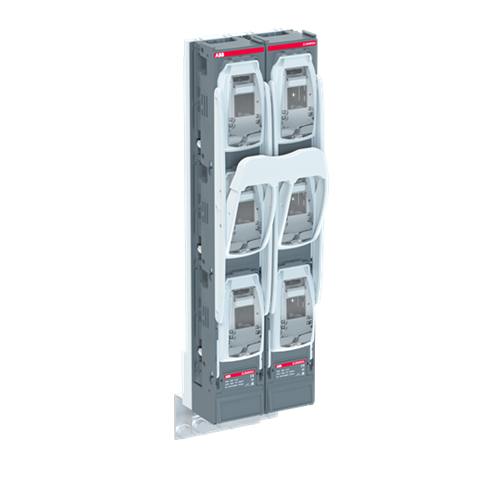

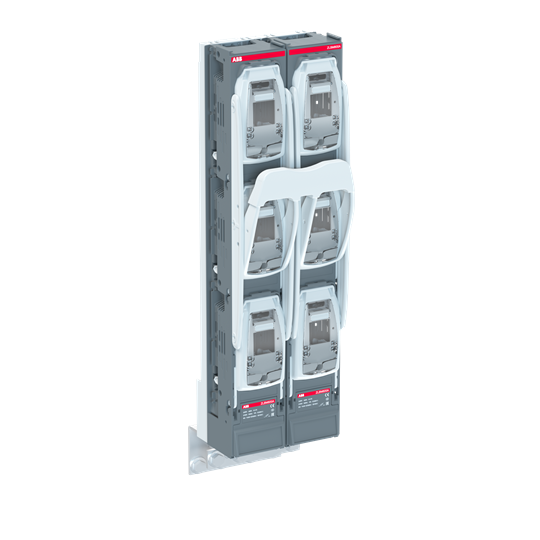

ABB ZLBM1250A-3P-M12 Strip Fuse Switch 3-P 1250A 500VAC Bolt Terminal IP30 For: NH3

Product Code: ZLBM1250A-3P-M12

  • Supports 1250 A rated current
  • Complies with IEC60947-3 standards
  • Operates at 500 VAC voltage
  • Features IP30 protection rating
  • Designed for NH3 base compatibility
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
ZLBM
Application
Utilities, infrastructure, manufacturing

Electrical

Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
500V AC
Rated Operational Current AC21-A (Ie)
1250A
Rated Operational Current AC22-A (Ie)
1250A
Rated Operational Current AC23-A (Ie)
1250A
Power Loss
at Rated Load 270W
Rated Current (In)
Main Circuit 1250A
Fuse Size
NH3
No. of Poles
3P

Dimensions & Physical Data

Depth
189mm
Height
747mm
Weight
12.25kg
Width
199mm

Environmental

IP Rating
Front IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
