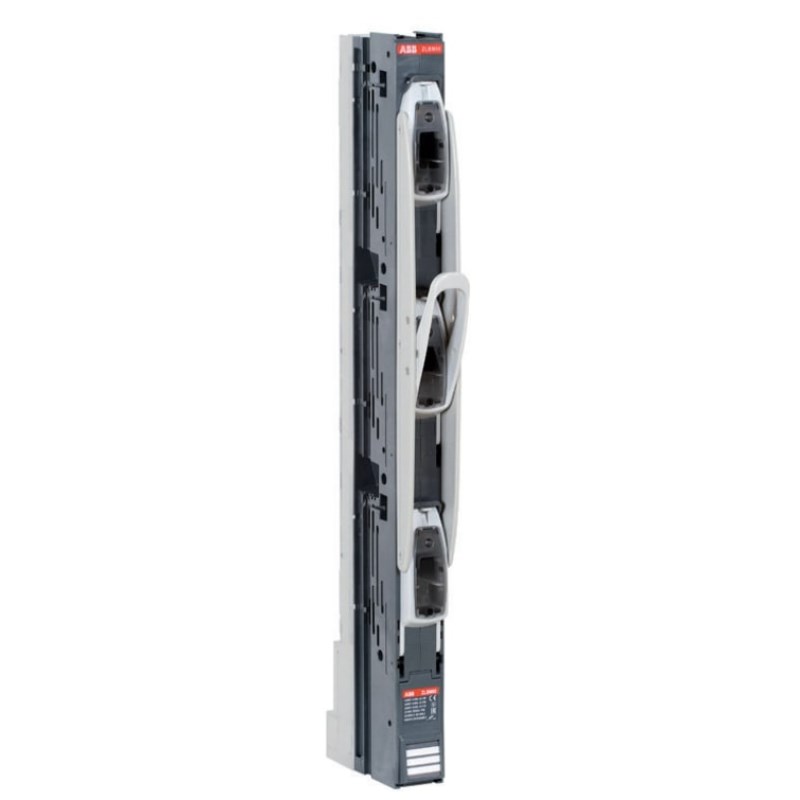

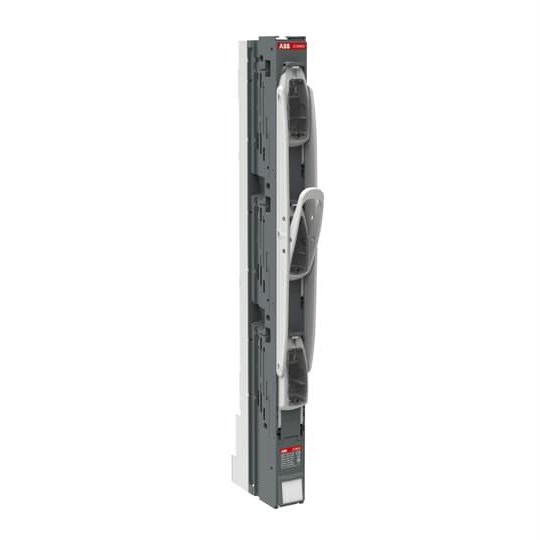

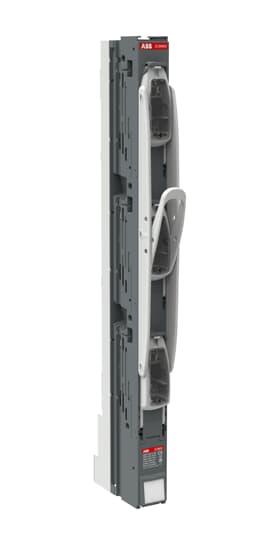

ABB ZLBM00-3P-M8 Strip Fuse Switch 3-P NH00 160A 1000VAC Bolt Terminal IP30 For: NH00

Product Code: ZLBM00-3P-M8

  • Handles up to 160 A current
  • Complies with IEC60947-3 standards
  • Operates at 1000 VAC voltage
  • Protects with IP30 rating
  • Compatible with NH00 base
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
ZLBM
Application
Manufacturing, commercial facilities, utilities

Electrical

Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 1000V AC
Rated Operational Current AC21-A (Ie)
160A
Rated Operational Current AC22-A (Ie)
160A
Rated Operational Current AC23-A (Ie)
160A
Power Loss
at Rated Load 33.6W
Rated Current (In)
Main Circuit 160A
Fuse Size
NH00
No. of Poles
3P

Dimensions & Physical Data

Depth
181mm
Height
662mm
Weight
1.82kg
Width
48.5mm

Environmental

IP Rating
Front IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
