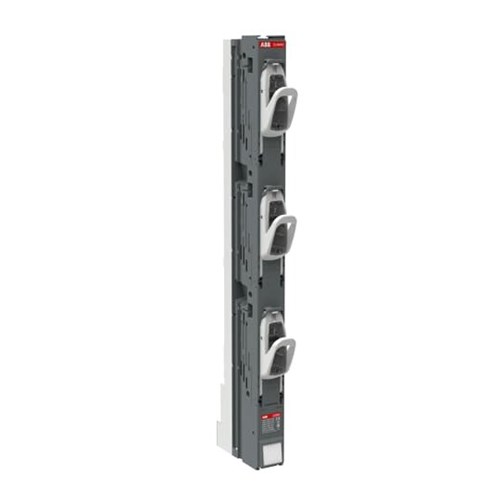

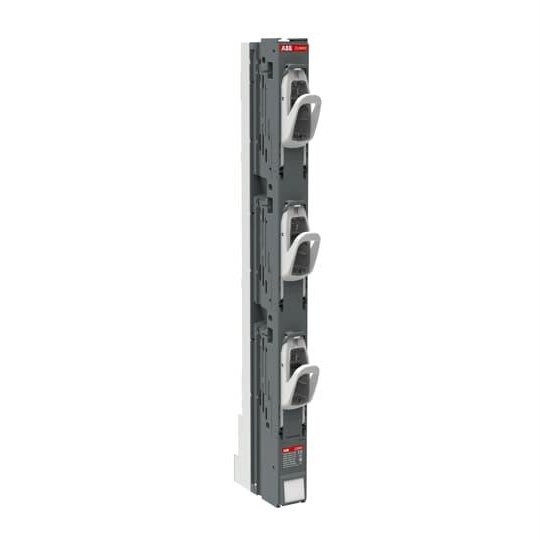

ABB ZLBM00-1P-M8 Strip Fuse Switch 1-P NH00 160A 1000VAC Bolt Terminal IP30 For: NH00

Product Code: ZLBM00-1P-M8

  • Rated for 160 A, 1000 VAC applications
  • Complies with IEC60947-3 standards
  • IP30 protection against solid objects
  • Designed for NH00 base and fuse size
  • 3P handle for convenient operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Strip Fuse Switch
Brand
ABB
Series
ZLBM00

Electrical

Max. Rated Operation AC Voltage (Ue)
1000V AC
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V AC
Rated Uninterrupted Current (Iu)
160A
Power Loss
33.6W
Rated Current (In)
160A
Rated Frequency
50/60Hz
No. of Poles
3P

Dimensions & Physical Data

Depth
169mm
Height
662mm
Weight
1.75kg
Width
48.5mm

Environmental

IP Rating
IP30

Documents

IPD Product Catalogue V17
