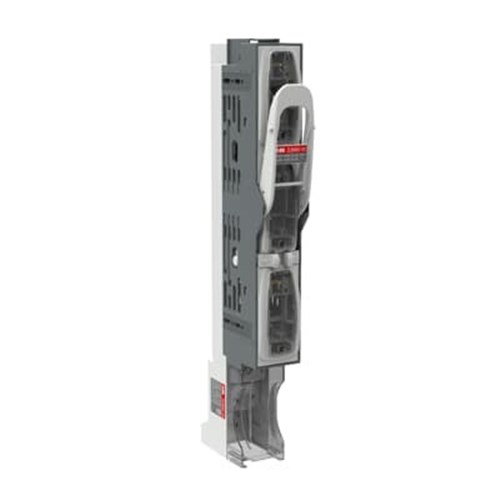

ABB ZLBM00-100-3P-M8 Pallet Fuse Switch Disconnector 3-P 800VAC IP30 For: NH00

Product Code: ZLBM00-100-3P-M8

  • Handles up to 160 A safely
  • Withstands short circuits up to 120 kA
  • Operates at a max of 800 VAC
  • Designed for NH00 base compatibility
  • Front side control element access
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
ZLBM
Application
Utilities, infrastructure, manufacturing

Electrical

Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 800V AC
Power Loss
at Rated Load 33.6W
Rated Current (In)
Main Circuit 160A
Fuse Size
NH00
No. of Poles
3P

Dimensions & Physical Data

Depth
124mm
Height
409mm
Weight
1.04kg
Width
49mm

Environmental

IP Rating
Front IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
