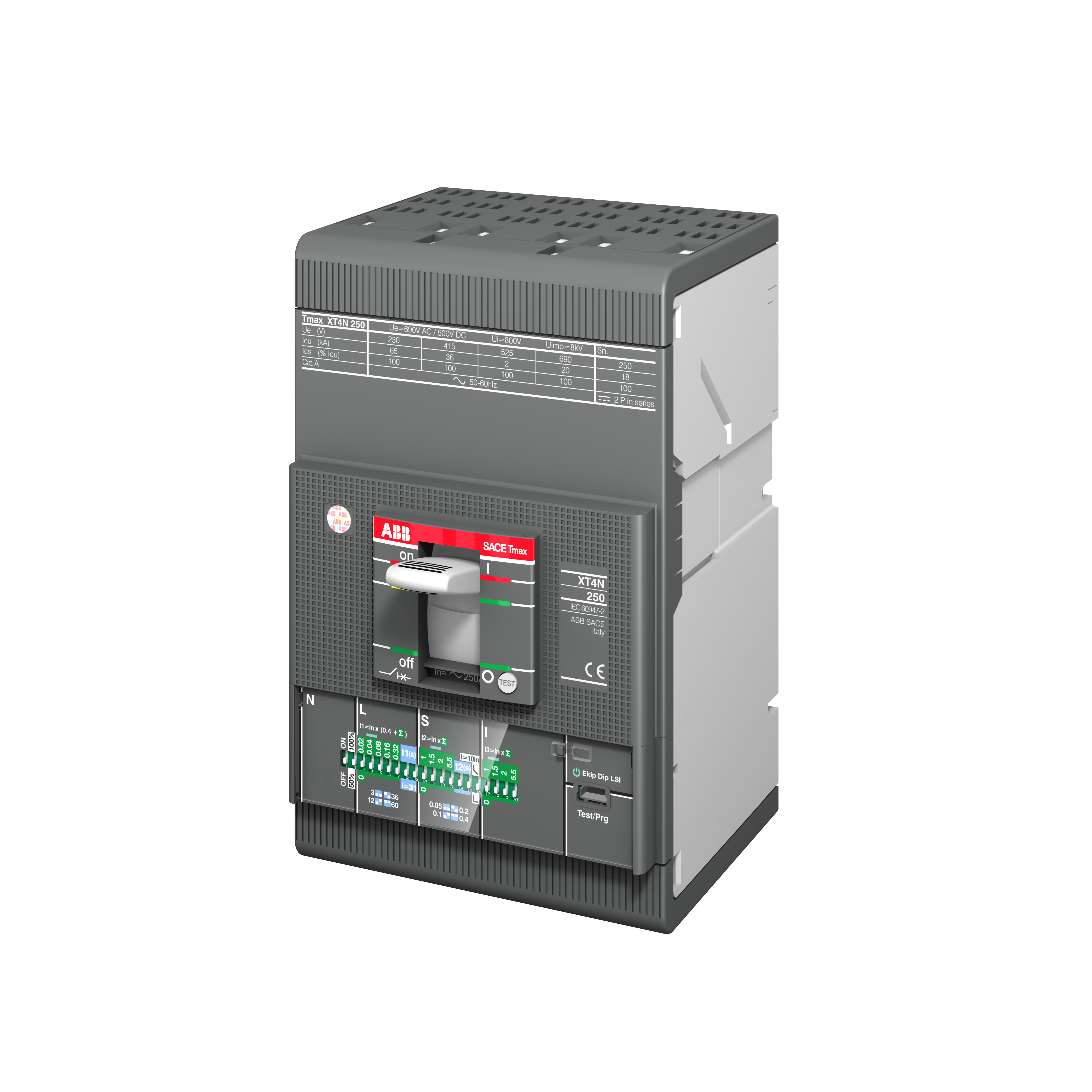

ABB XT4N3T250MC1 Moulded Case Circuit Breaker 100-250A 3-P Ekip Dip LSI Fixed For: T4

Product Code: XT4N3T250MC1

  • MCCB with 100-250 A rated current
  • Ekip Dip LSI trip unit for precision
  • 3-pole configuration
  • Fixed connection type
  • Compatible with T4 systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB - Breaking Part
Brand
ABB
Series
XT4N 250 Breaking part
Application
Power distribution systems , Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Electrical

Max. Rated Operation AC Voltage (Ue)
690V
Type of Protection Trip Unit
Electronic (Accessory)
Rated Current (In)
250A
Rated Frequency
50Hz to 60Hz
Trip Curve
Ekip Dip LS/I
Electrical Life
8000
No. of Poles
3P

Mechanical

Housing Material
Thermoset insulating material (moulded case)

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C and +70°C
Operating Temperature
-25°C and +70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA

Documents

IPD Product Catalogue V17
