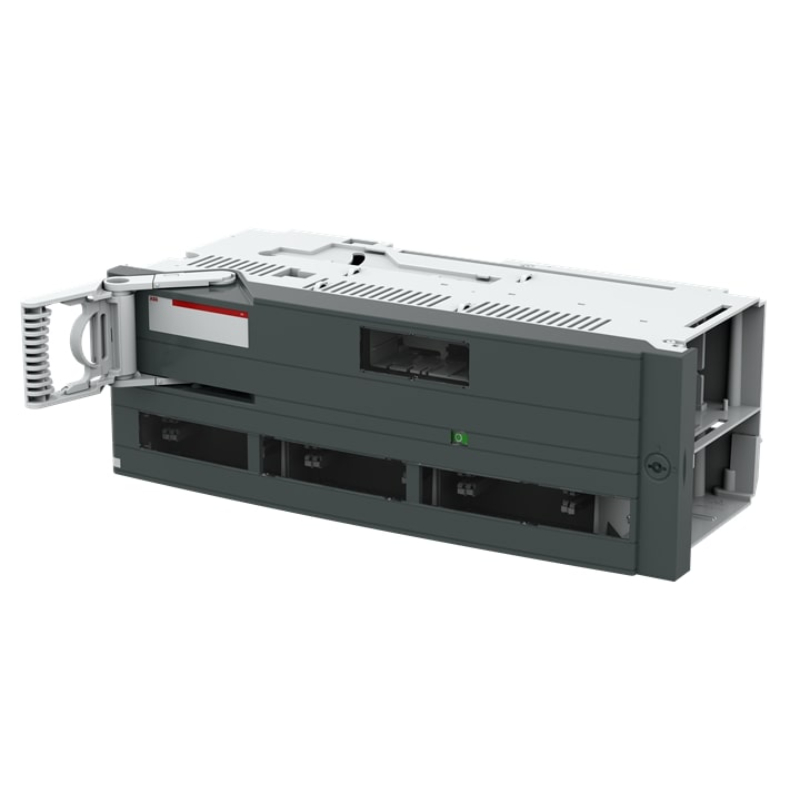

ABB XRG3-185/10-3P Disconnects Fuse 3-P NH3 630A 690VAC 245 Watt IP41 For: NH3

Product Code: XRG3-185/10-3P

  • Rated for 630 A and 690 VAC
  • Complies with IEC 60947-3, RoHS, REACH, CE
  • Handles short circuits up to 120 kA
  • IP41 protection for reliable use
  • Suitable for NH3 base and busbar mount
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operational Voltage (Ue)
690V AC
Power Loss
at Rated Load 245W
Rated Current (In)
630A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC
Terminal Type
Bolt
Fuse Size
NH3
Fuse Protected Short Circuit Making (kArms)
100
Fuse Protected Short Circuit Withstand (kArms)
100
Rated Operational Current AC-22B (Ie)
(690V) 500A
Rated Operational Current AC-23B (le)
(690V) 500A
Busbar Dimensions
Thickness 10 mm
Distance Between Phases
185 mm
Electrical Life
1000
Mechanical Life
5000
Fuse System
DIN

Dimensions & Physical Data

Depth
335mm
Height
200mm
Weight
15.62kg
Width
590mm

Environmental

IP Rating
IP41

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
