Specifications

Product Type

Fuse Switch Disconnector

Brand

ABB

No. of Poles (Total) 3P	Rated Impulse Withstand Voltage (Uimp) 8kV	Rated Insulation Voltage (Ui) 1000V
Rated Operational Voltage (Ue) 690V AC	Power Loss at Rated Load 100W	Rated Current (In) 400A
Rated Frequency 50/60Hz	Rated Voltage (Ur) 690V AC	Terminal Type Bolt
Fuse Size NH2	Fuse Protected Short Circuit Making (kArms) 100	Fuse Protected Short Circuit Withstand (kArms) 100
Rated Operational Current AC-22B (Ie) (690V) 400A	Rated Operational Current AC-23B (le) (690V) 400A	Busbar Dimensions Thickness 5 mm
Distance Between Phases 50 mm	Electrical Life 1000	Mechanical Life 5000
Fuse System DIN

Depth 335mm	Height 200mm	Weight 15.39kg
Width 590mm

IP Rating

IP41

Standards and Approvals

IEC 60947-3

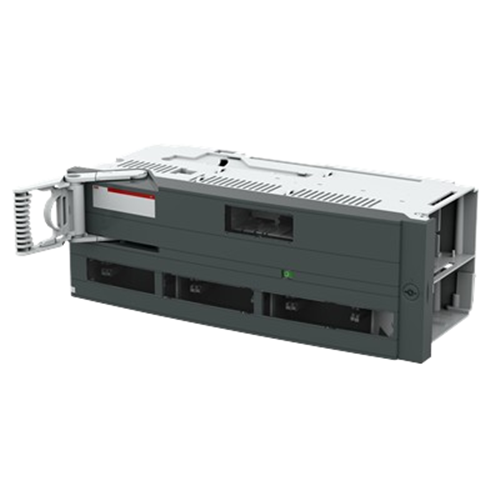

ABB XRG2-50/5-3P SWITCH DISCONNECTOR FUSE XRG2-50/5-3P
