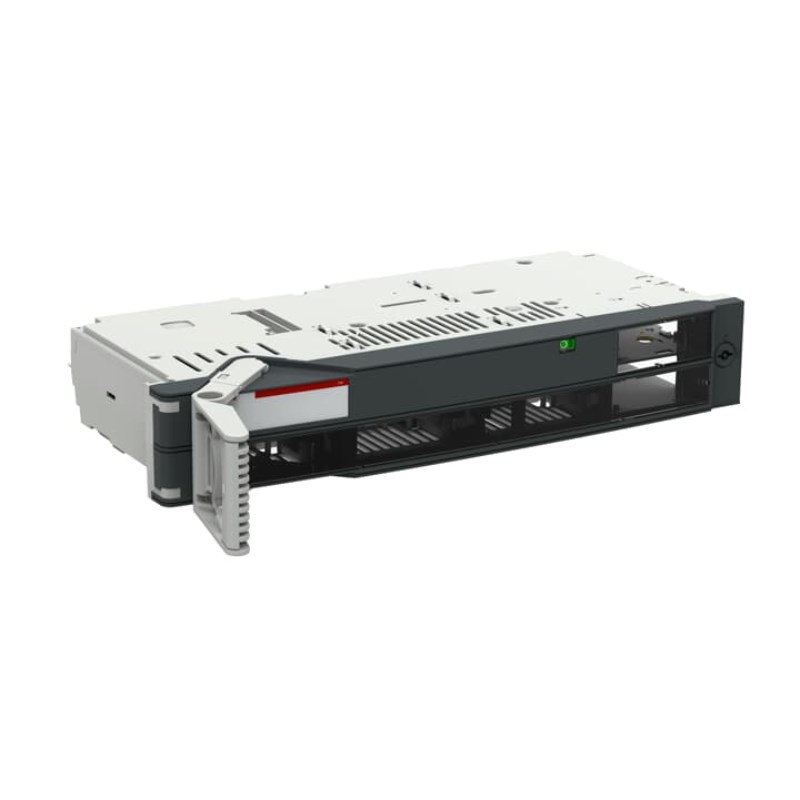

ABB XRG1-50/5-3P Disconnects Fuse 3-P NH1 250A 690VAC 70 Watt IP41 For: NH1

Product Code: XRG1-50/5-3P

  • Rated for 250 A, ideal for high current apps
  • Complies with IEC 60947-3, RoHS, REACH, CE
  • Compact size: 590x100x335 mm (WxHxD)
  • High short circuit rating of 120 kA
  • IP41 rated protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector Fuse
Brand
ABB
Series
SlimLine XR Gold
Application
Busbar-mounted switch disconnector fuse for low-voltage distribution

Electrical

Power Loss
70W
Rated Current (In)
250A
Rated Voltage (Ur)
690V AC
No. of Poles
3P

Mechanical

Fixing Centres
50mm
Mounting
5 mm Busbar mounted
Size Code
NH1
Connection/Termination
Bolt

Dimensions & Physical Data

Depth
100mm
Height
335mm
Weight
6.79kg
Width
590mm

Environmental

IP Rating
IP41 front

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
