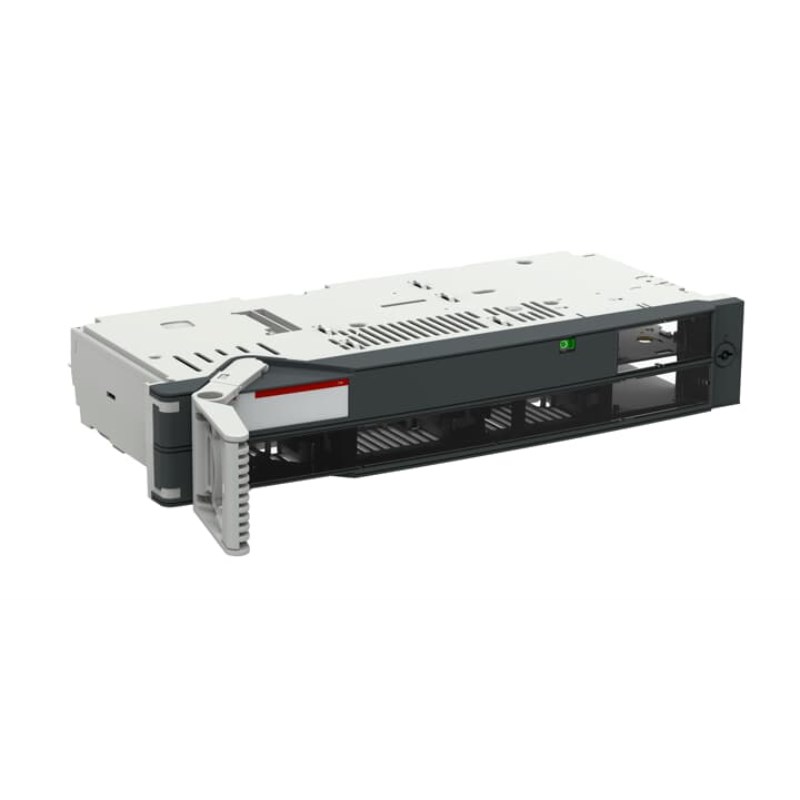

ABB XRG1-185/10-3P Disconnects Fuse 3-P NH1 250A 690VAC 70 Watt IP41 For: NH1

Product Code: XRG1-185/10-3P

  • 250 A fuse disconnector with NH1 base compatibility
  • Complies with IEC 60947-3, RoHS, REACH, CE standards
  • Rated for 690 VAC and short circuit current of 120 kA
  • IP41 protection with side cable entry
  • Front-side control element position
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operational Voltage (Ue)
690V AC
Power Loss
at Rated Load 70W
Rated Current (In)
250A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC
Terminal Type
Bolt
Fuse Size
NH1
Fuse Protected Short Circuit Making (kArms)
100
Fuse Protected Short Circuit Withstand (kArms)
100
Rated Operational Current AC-22B (Ie)
(690V) 250A
Rated Operational Current AC-23B (le)
(690V) 250A
Busbar Dimensions
Thickness 10 mm
Distance Between Phases
185 mm
Electrical Life
200
Mechanical Life
1600
Fuse System
DIN

Dimensions & Physical Data

Depth
335mm
Height
100mm
Weight
6.9kg
Width
590mm

Environmental

IP Rating
IP41

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
