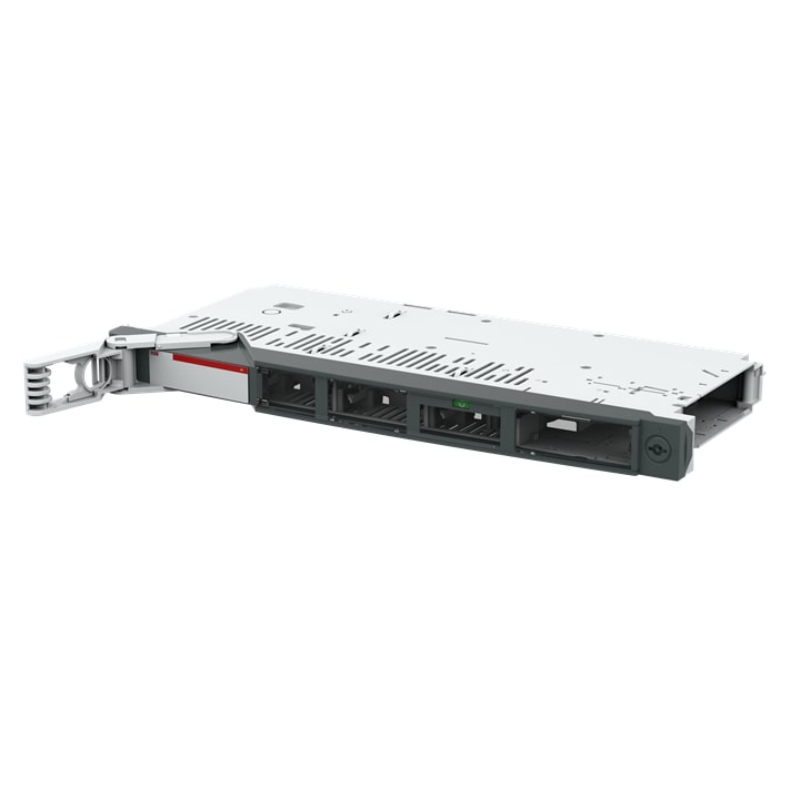

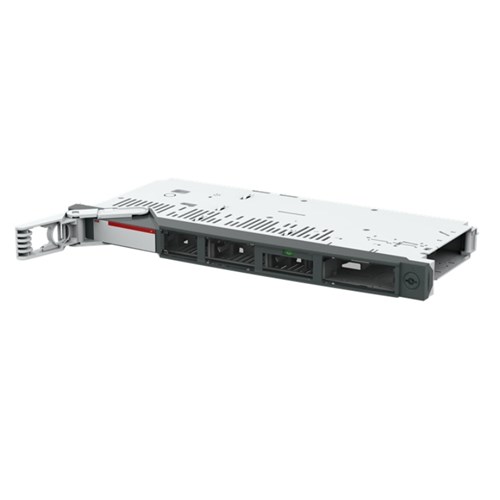

ABB XRG00-50/5-3P Disconnects Fuse 3-P NH00 160A 690VAC 33 Watt IP41 For: NH00

Product Code: XRG00-50/5-3P

  • 160 A rated current for robust performance
  • Complies with IEC 60947-3, RoHS, REACH, CE
  • IP41 protection against dust and water ingress
  • Suitable for NH00 base with side cable entry
  • High short circuit rating of 120 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector Fuse
Brand
ABB
Series
SlimLine XR Gold
Application
Busbar-mounted switch disconnector fuse for low-voltage distribution

Electrical

Power Loss
33W
Rated Current (In)
160A
Rated Voltage (Ur)
690V AC
No. of Poles
3P

Mechanical

Fixing Centres
50mm
Mounting
5 mm Busbar mounted
Size Code
NH00
Connection/Termination
Bolt

Dimensions & Physical Data

Depth
50mm
Height
335mm
Weight
3.81kg
Width
590mm

Environmental

IP Rating
IP41 front

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
