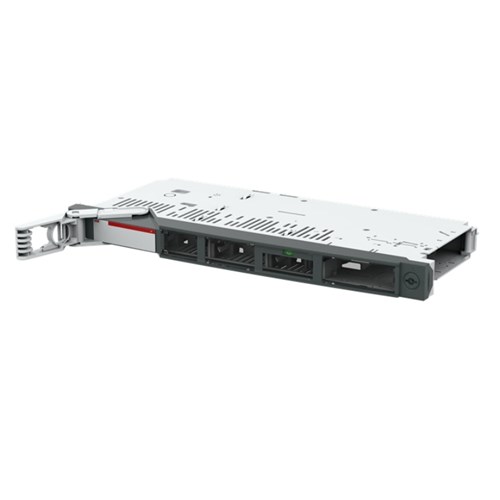

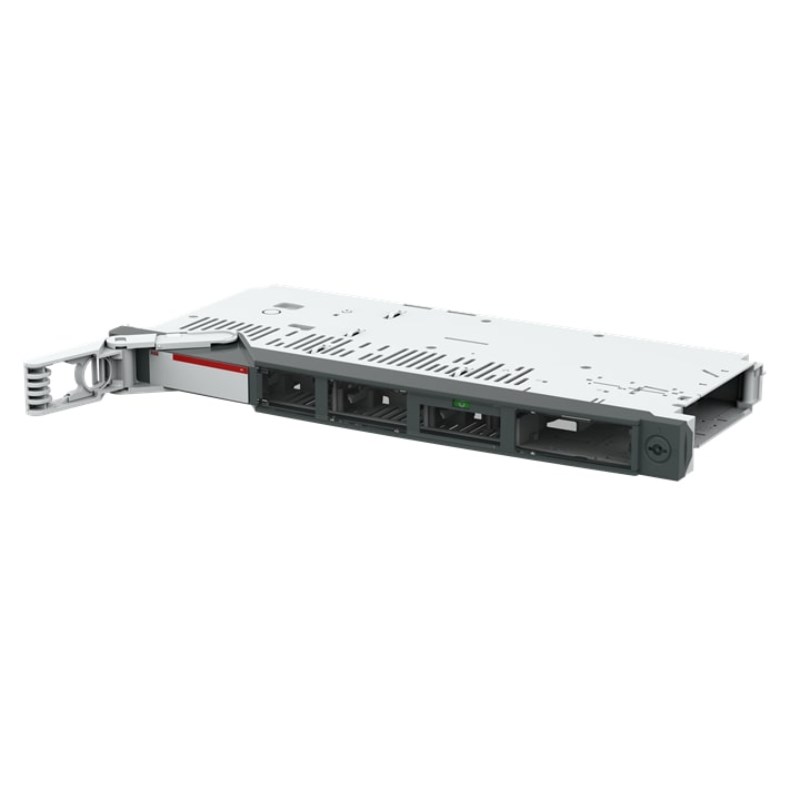

ABB XRG00-185/10-3P Disconnects Fuse 3-P NH00 160A 690VAC 33 Watt IP41 For: NH00

Product Code: XRG00-185/10-3P

  • Rated for 160 A and 690 VAC applications
  • Conforms to IEC 60947-3, RoHS, REACH, CE
  • IP41 protection with side cable entry
  • Compatible with NH00 base and size fuses
  • Designed for busbar mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector Fuse
Brand
ABB
Series
SlimLine XR Gold
Application
Busbar-mounted switch disconnector fuse for low-voltage distribution

Electrical

Power Loss
33W
Rated Current (In)
160A
Rated Voltage (Ur)
690V AC
No. of Poles
3P

Mechanical

Fixing Centres
185mm
Mounting
10 mm Busbar mounted
Size Code
NH00
Connection/Termination
Bolt

Dimensions & Physical Data

Depth
50mm
Height
335mm
Weight
3.79kg
Width
590mm

Environmental

IP Rating
IP41 front

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
