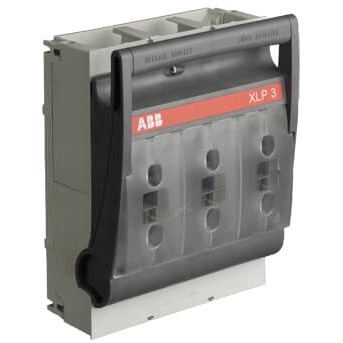

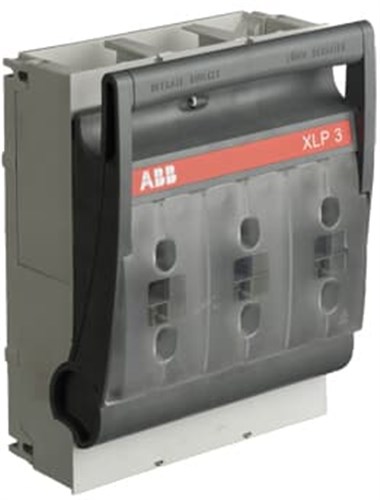

ABB XLP3 Fuse Switch Disconnector Without Bolt 3-P 630A 500/690VAC Lug Terminal IP30

Product Code: XLP3

  • Fuse disconnector with 630 A rated current
  • Compact size: 250mm W x 330mm H x 142mm D
  • Complies with IEC60947-3, GB/T14048.3 standards
  • Operates at 500-690 VAC, IP30 protection
  • Suitable for 50/60 Hz frequency applications
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operational Voltage (Ue)
500V AC690V AC
Utilization Category
AC22B AC21B
Power Loss
at Rated Load 24W
Rated Current (In)
630A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
500V AC690V AC
Terminal Type
Lug terminals
Fuse Size
NH3
Rated Conditional Short-Circuit Current (Inc)
50 kiloampere rms
Rated Operational Current AC-21B (Ie)
(690V) 500A
Rated Operational Current AC-22B (Ie)
(500V) 630A
Electrical Life
200
Mechanical Life
800
Fuse System
DIN

Mechanical

Handle Type
Front Cover 3P
Mounting
Baseplate

Dimensions & Physical Data

Depth
142mm
Height
330mm
Weight
4.04kg
Width
250mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3GB/T14048.3
