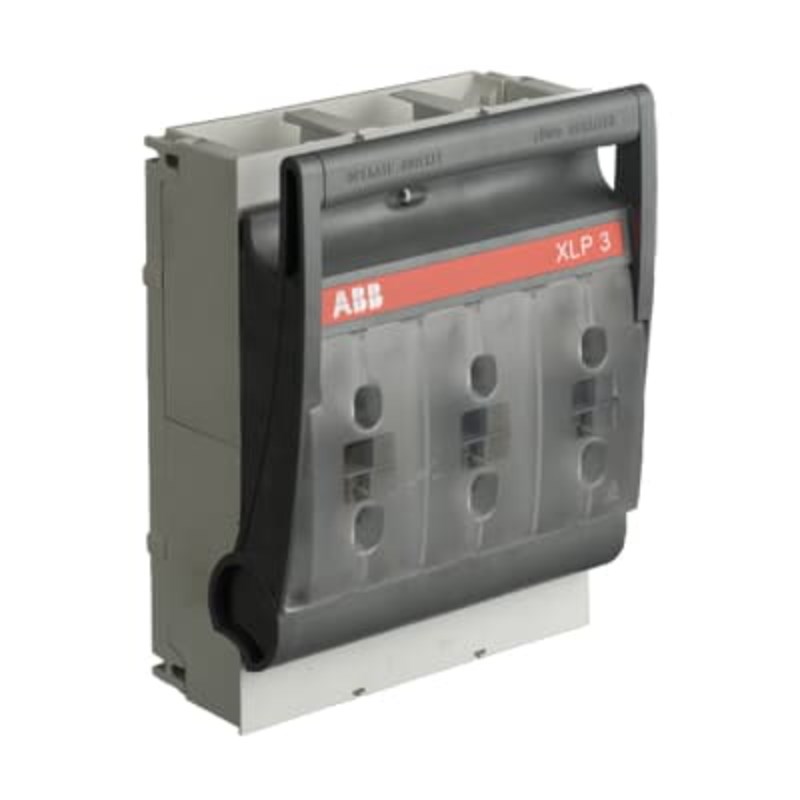

ABB XLP3-6M12 Disconnects Fuse 3-P 630A 500/690VAC IP20 IP30

Product Code: XLP3-6M12

  • Handles up to 630 A current
  • Operates at 500-690 VAC
  • Available in IP20/IP30 protection
  • Suitable for 50/60 Hz systems
  • Insulation voltage rated at 1000 V
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
EasyLine XLP
Application
Fuse switch disconnection and protection in low-voltage distribution

Electrical

Power Loss
24W
Rated Current (In)
630A
Rated Frequency
50/60Hz
Rated Short Circuit Current
50kA rms
Rated Voltage (Ur)
690V AC
No. of Poles
3P

Mechanical

Mounting
Base mount
Size Code
NH3
Connection/Termination
Cable clamp / bridge clamps

Dimensions & Physical Data

Depth
330mm
Height
142mm
Weight
4.75kg
Width
250mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
