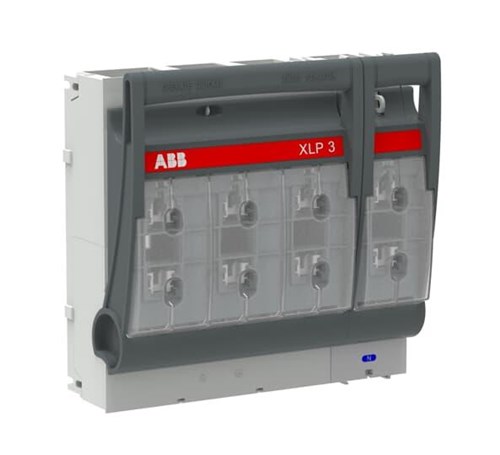

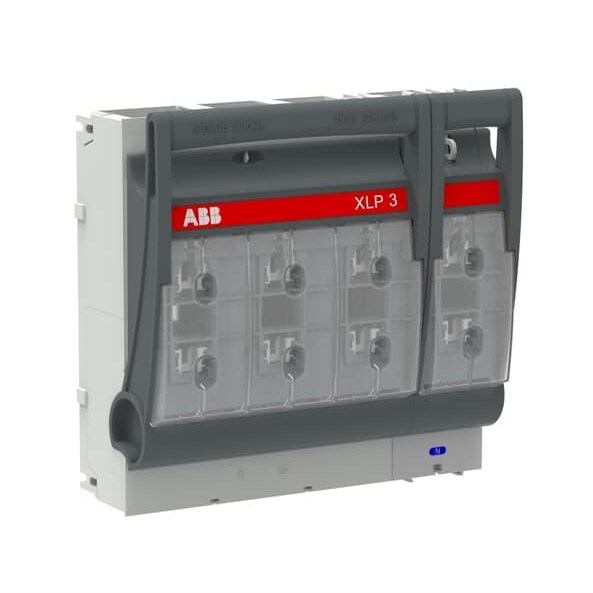

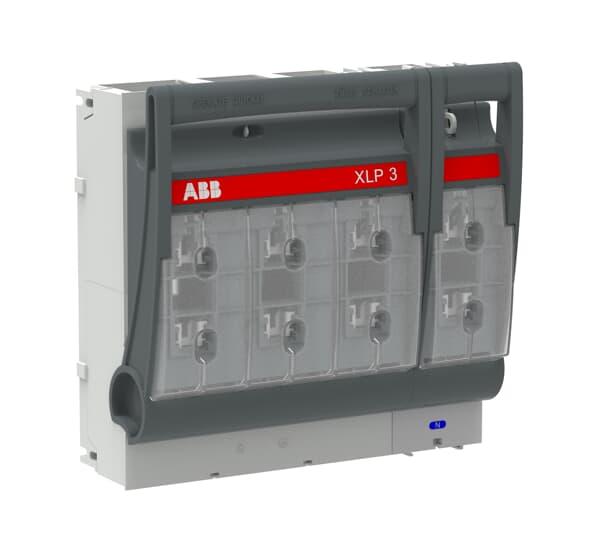

ABB XLP3-4P Disconnects Fuse 4-P 630A 500VAC Lug Terminal IP30 For: NH3

Product Code: XLP3-4P

  • Rated for 630 A and 500 VAC
  • Complies with IEC60947-3 standards
  • Compact size: 339x142x330 mm
  • High short circuit rating of 50 kA
  • IP30 protection with front cover handle
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
EasyLine XLP
Application
Fuse switch disconnection and protection in low-voltage distribution

Electrical

Power Loss
24W
Rated Current (In)
630A
Rated Frequency
50/60Hz
Rated Short Circuit Current
50kA rms
Rated Voltage (Ur)
690V AC
No. of Poles
4P

Mechanical

Mounting
Base mount
Size Code
NH3
Connection/Termination
Lug terminals

Dimensions & Physical Data

Depth
142mm
Height
330mm
Weight
6.74kg
Width
339mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
