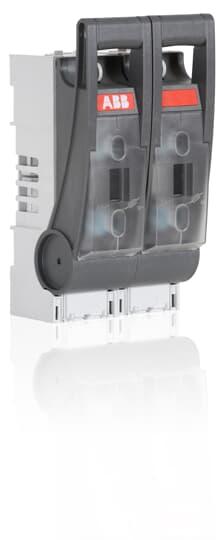

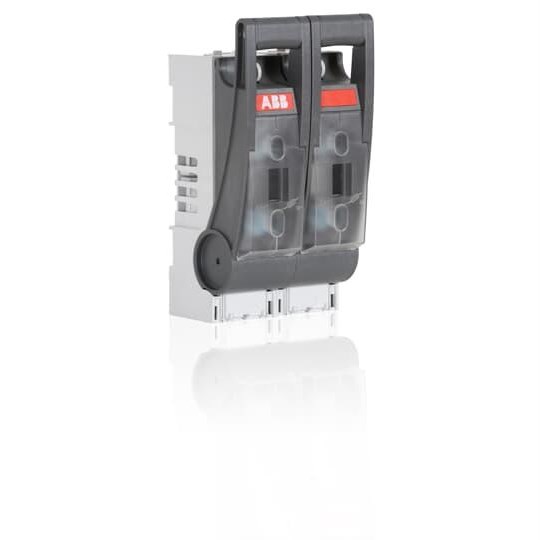

ABB XLP3-2P Disconnects Fuse 2-P 630A 500-690VAC Lug Terminal IP30 For: NH3

Product Code: XLP3-2P

  • Rated for 630 A, ideal for high-current apps
  • Compact design: 179 mm wide, 142 mm high
  • Handles up to 50 kA short circuit current
  • Suitable for NH3 base with busbar mounting
  • IP30 protection ensures reliable operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
EasyLine XLP
Application
Fuse switch disconnection and protection in low-voltage distribution

Electrical

Power Loss
24W
Rated Current (In)
630A
Rated Frequency
50/60Hz
Rated Short Circuit Current
50kA rms
Rated Voltage (Ur)
690V AC
No. of Poles
2P

Mechanical

Mounting
Base mount
Size Code
NH3
Connection/Termination
Lug terminals

Dimensions & Physical Data

Depth
142mm
Height
330mm
Weight
3.95kg
Width
179mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
