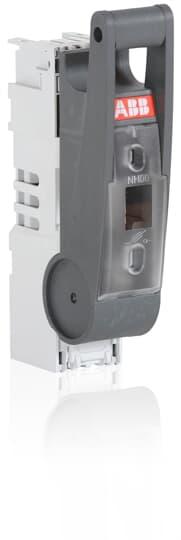

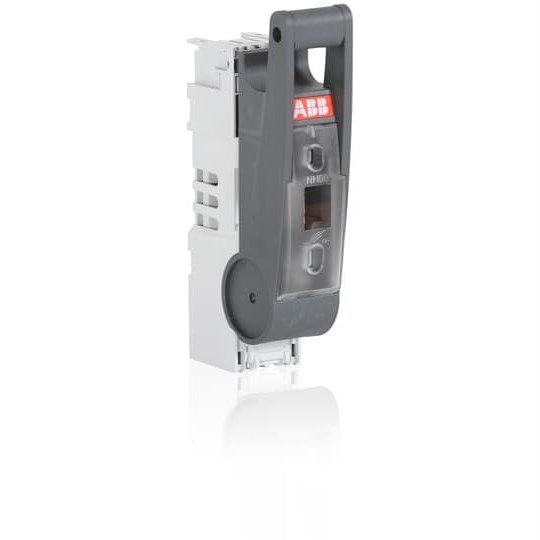

ABB XLP3-1P Disconnects Fuse 1-P 630A 500-690VAC Lug Terminal IP30 For: NH3

Product Code: XLP3-1P

  • Rated current of 630 A
  • Handles up to 50 kA short circuits
  • Voltage range: 500-690 VAC
  • Single pole with front cover handle
  • IP30 protection for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
EasyLine XLP
Application
Fuse switch disconnection and protection in low-voltage distribution

Electrical

Power Loss
24W
Rated Current (In)
630A
Rated Frequency
50/60Hz
Rated Short Circuit Current
50kA rms
Rated Voltage (Ur)
690V AC
No. of Poles
1P

Mechanical

Mounting
Base mount
Size Code
NH3
Connection/Termination
Lug terminals

Dimensions & Physical Data

Depth
142mm
Height
330mm
Weight
1.87kg
Width
89.5mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
