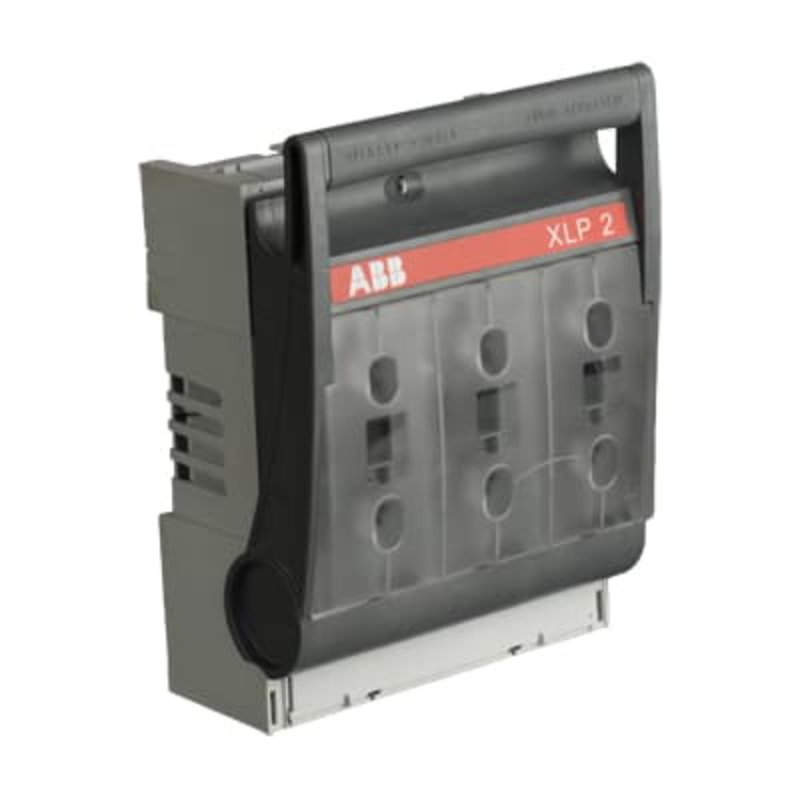

ABB XLP2-6M12 Disconnects Fuse 3-P 400A 500-690VAC Bolt Terminal IP30

Product Code: XLP2-6M12

  • Rated for 400 A current
  • Supports 500-690 VAC voltage
  • Compact size: 210x290x130 mm
  • IP30 protection rating
  • Baseplate mounting with front cover handle
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
EasyLine XLP
Application
Fuse switch disconnection and protection in low-voltage distribution

Electrical

Power Loss
13W
Rated Current (In)
400A
Rated Frequency
50/60Hz
Rated Short Circuit Current
50kA rms
Rated Voltage (Ur)
690V AC
No. of Poles
3P

Mechanical

Mounting
Base mount
Size Code
NH2
Connection/Termination
Cable clamp / bridge clamps

Dimensions & Physical Data

Depth
290mm
Height
130mm
Weight
3.02kg
Width
210mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
