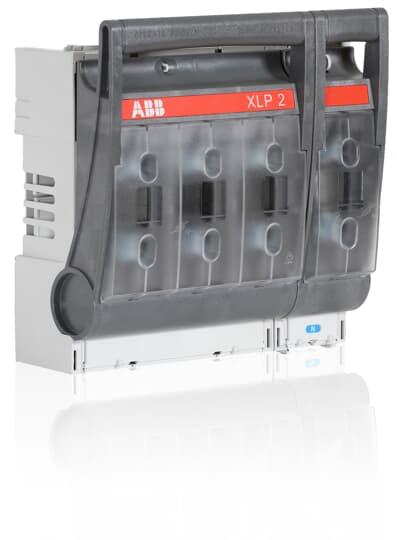

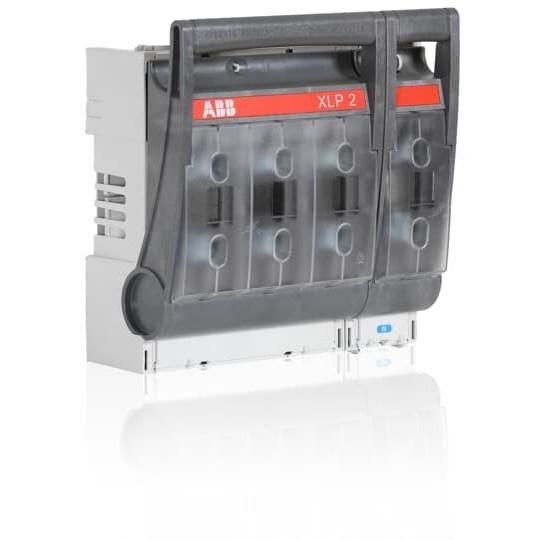

ABB XLP2-4P Disconnects Fuse 4-P 400A 500VAC Lug Terminal IP30 For: NH2

Product Code: XLP2-4P

  • Fuse disconnector with 400 A rating
  • Compact size: 290x129x289 mm
  • Handles up to 50 kA short circuit
  • Operates at 500 VAC, 4 poles
  • IP30 protection for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB

Electrical

No. of Poles (Total)
4P
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operational Voltage (Ue)
500V AC
Utilization Category
AC22B
Power Loss
at Rated Load 13W
Rated Current (In)
400A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
500V AC
Terminal Type
Lug terminals
Fuse Size
NH2
Rated Conditional Short-Circuit Current (Inc)
50 kiloampere rms
Rated Operational Current AC-22B (Ie)
(500V) 400A
Electrical Life
200
Mechanical Life
800
Fuse System
DIN

Mechanical

Handle Type
Front Cover 4P
Mounting
Baseplate

Dimensions & Physical Data

Depth
289mm
Height
129mm
Weight
3.87kg
Width
290mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3GB/T14048.3
