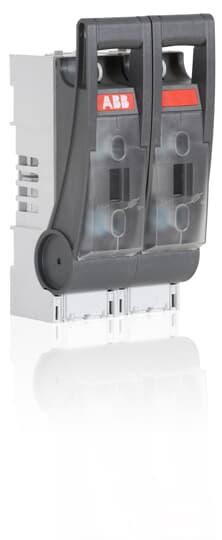

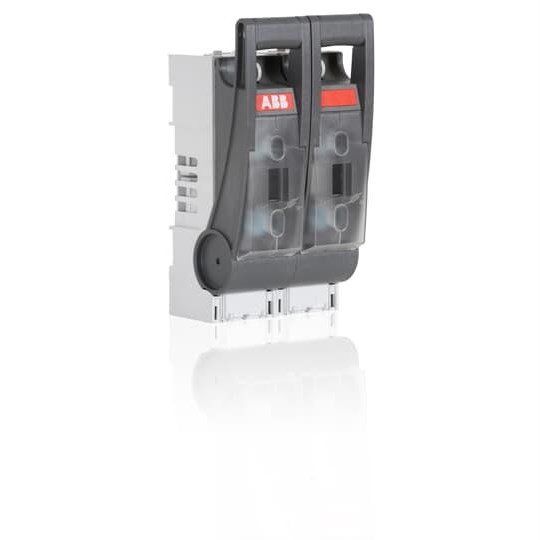

ABB XLP2-2P Disconnects Fuse 2-P 400A 500-690VAC Lug Terminal IP30 For: NH2

Product Code: XLP2-2P

  • Rated for 400 A, 500-690 VAC
  • Compact size: 160x129x289 mm
  • Handles short circuits up to 50 kA
  • IP30 protection rating
  • Designed for NH2 base busbar mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
EasyLine XLP
Application
Fuse switch disconnection and protection in low-voltage distribution

Electrical

Power Loss
13W
Rated Current (In)
400A
Rated Frequency
50/60Hz
Rated Short Circuit Current
50kA rms
Rated Voltage (Ur)
690V AC
No. of Poles
2P

Mechanical

Mounting
Base mount
Size Code
NH2
Connection/Termination
Lug terminals

Dimensions & Physical Data

Depth
129mm
Height
289mm
Weight
2.32kg
Width
160mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
