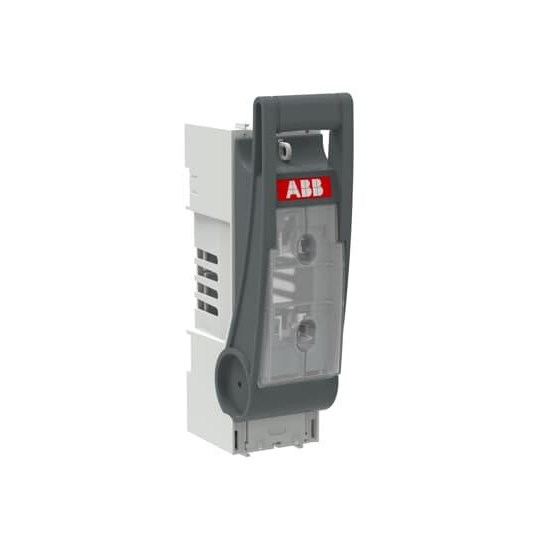

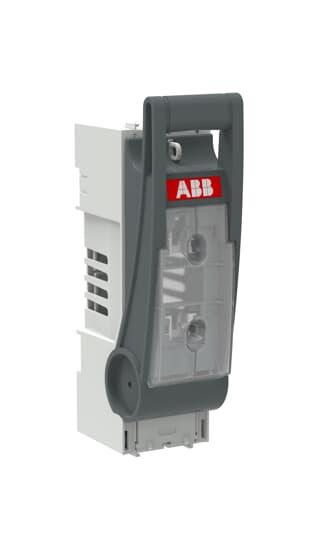

ABB XLP2-1P Disconnects Fuse 1-P 400A 500-690VAC Lug Terminal IP30 For: NH2

Product Code: XLP2-1P

  • Handles up to 400 A current
  • Compact size: 80x129x289 mm
  • Rated for 50 kA short circuit
  • Operates at 500-690 VAC
  • IP30 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB

Electrical

No. of Phases
1 phase
Rated Current (In)
400A
Rated Voltage (Ur)
500V

Dimensions & Physical Data

Depth
289mm
Height
129mm
Weight
1.06kg
Width
80mm
Size
NH2

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, GB/T14048.3

Documents

IPD Product Catalogue V17
