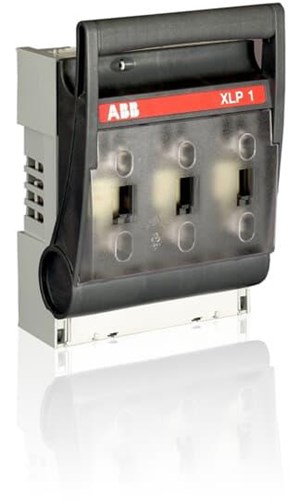

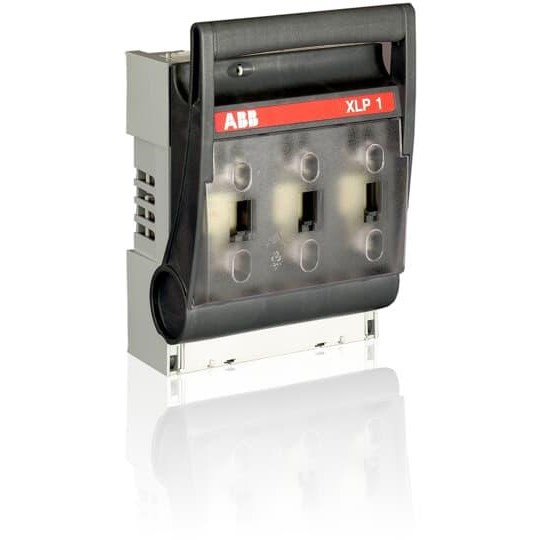

ABB XLP1-6M10 Disconnects Fuse 3-P 250A 500-800VAC Bolt Terminal IP30 For: NH1

Product Code: XLP1-6M10

  • Handles 250 A current efficiently.
  • Operates at up to 800 VAC.
  • Supports 50 kA short circuit rating.
  • Designed for NH1 base compatibility.
  • IP30 protection for safety.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Fuse Switch Disconnector
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Current (In)
250 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage (Ue)
500 V AC690 V AC800 V AC
Utilization Category
AC22B AC21B AC22B AC22B
Power Loss
at Rated Load 7.5 W
Rated Frequency
50/60 Hz
Rated Voltage
500 V AC690 V AC800 V AC
Terminal Type
Bolt
Fuse Size
NH1
Rated Conditional Short-Circuit Current (Inc)
50 kiloampere rms
Rated Operational Current AC-21B (Ie)
(690 V) 200 A
Rated Operational Current AC-22B (Ie)
(500 V) 250 A
Electrical Durability
200
Mechanical Durability
1400
Fuse System
DIN

Mechanical

Handle Type
Front Cover 3P
Mounting Type
Baseplate

Dimensions

Depth
116 mm
Height
270 mm
Weight
1.78 kg
Width
185 mm

Environmental

IP Rating
IP30

Standards and Approvals

Standards and Approvals
IEC60947-3GB/T14048.3
