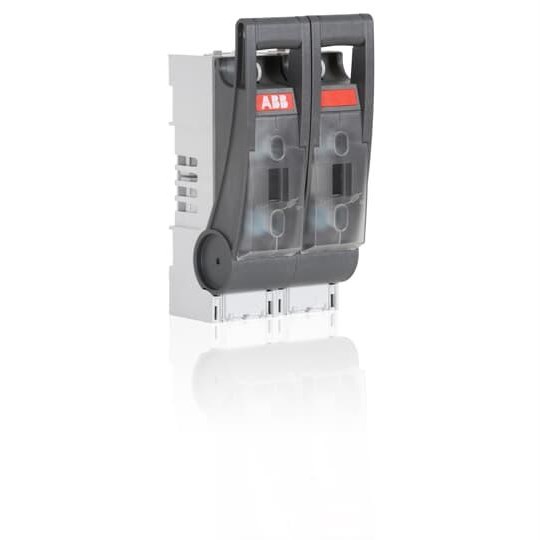

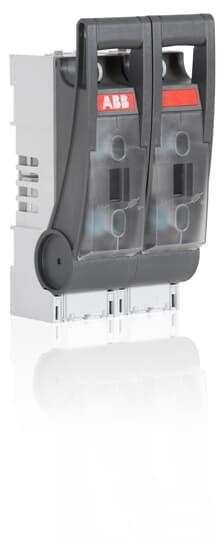

ABB XLP1-2P Disconnects Fuse 2-P 250A 500-690VAC Lug Terminal IP30 For: NH1

Product Code: XLP1-2P

  • Rated for 250 A current handling
  • Supports 500-690 VAC voltage range
  • Withstands short circuits up to 50 kA
  • Compact design: 70mm (W) x 117mm (H) x 269mm (D)
  • Front-side control for easy access
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
EasyLine XLP
Application
Fuse switch disconnection and protection in low-voltage distribution

Electrical

Power Loss
7.5W
Rated Current (In)
250A
Rated Frequency
50/60Hz
Rated Short Circuit Current
50kA rms
Rated Voltage (Ur)
690V AC
No. of Poles
2P

Mechanical

Mounting
Base mount
Size Code
NH1
Connection/Termination
Lug terminals

Dimensions & Physical Data

Depth
117mm
Height
269mm
Weight
1.63kg
Width
140mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
