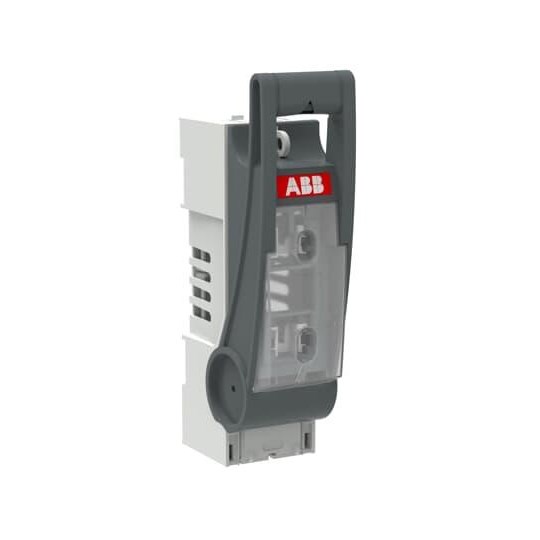

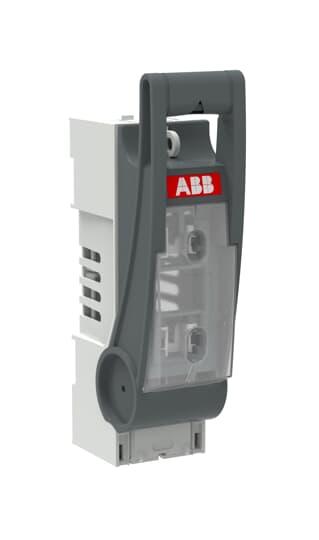

ABB XLP1-1P Disconnects Fuse 1-P 250A 500-690VAC Lug Terminal IP30 For: NH1

Product Code: XLP1-1P

  • Rated for 250 A, 500-690 VAC
  • Short circuit current: 50 kA
  • IP30 protection level
  • Fits NH1 base, busbar mount
  • Front side control element
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
EasyLine XLP
Application
Fuse switch disconnection and protection in low-voltage distribution

Electrical

Power Loss
7.5W
Rated Current (In)
250A
Rated Frequency
50/60Hz
Rated Short Circuit Current
50kA rms
Rated Voltage (Ur)
690V AC
No. of Poles
1P

Mechanical

Mounting
Base mount
Size Code
NH1
Connection/Termination
Lug terminals

Dimensions & Physical Data

Depth
117mm
Height
269mm
Weight
0.7kg
Width
70mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
