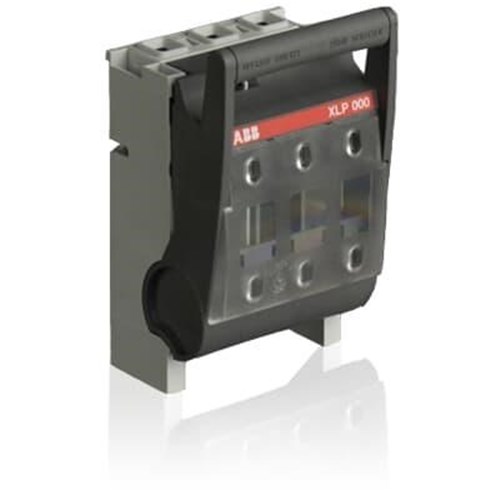

ABB XLP000-6CC Disconnects Fuse 3-P 100A 400-690VAC Cable Clamp Terminal IP30 For: EV008979

Product Code: XLP000-6CC

  • 100 A rated current for efficient performance
  • Compact size: 90x152x80 mm
  • Handles up to 50 kA short circuit current
  • Operates at 400-690 VAC voltage range
  • IP30 protection rating for durability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Fuse Switch Disconnector
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Current (In)
100 A
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Insulation Voltage (Ui)
690 V
Rated Operational Voltage (Ue)
400 V AC500 V AC690 V AC
Utilization Category
AC23B AC22B AC21B
Power Loss
at Rated Load 1.4 W
Rated Frequency
50/60 Hz
Rated Voltage
400 V AC500 V AC690 V AC
Terminal Type
Cable Clamp
Fuse Size
NH000 NH00C
Rated Conditional Short-Circuit Current (Inc)
50 kiloampere rms
Rated Operational Current AC-21B (Ie)
(690 V) 50 A
Rated Operational Current AC-22B (Ie)
(500 V) 100 A
Rated Operational Current AC-23B (le)
(400V) 80 A
Electrical Durability
300
Mechanical Durability
1700
Fuse System
DIN

Mechanical

Handle Type
Front Cover 3P
Mounting Type
Baseplate

Dimensions

Depth
80 mm
Height
152 mm
Weight
0.4 kg
Width
90 mm

Environmental

IP Rating
IP30

Standards and Approvals

Standards and Approvals
IEC60947-3GB/T14048.3
