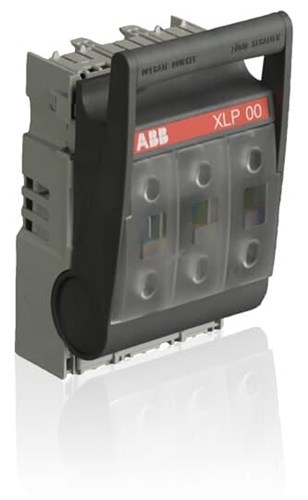

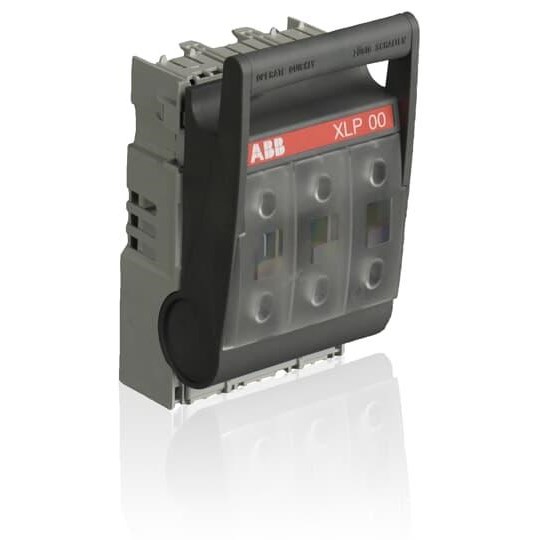

ABB XLP00-6M8 Disconnects Fuse 3-P 160A 400-690VAC Bolt Terminal IP30 For: EV008979

Product Code: XLP00-6M8

  • Handles up to 160 A current
  • Fits 3 poles with IP30 protection
  • Operates at 400-690 VAC voltage
  • Withstands short circuits up to 50 kA
  • Front side control for easy access
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Fuse Switch Disconnector
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Current (In)
160 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage (Ue)
400 V AC500 V AC690 V AC800 V AC1000 V AC
Utilization Category
AC23B AC22B AC21B AC22B AC22B
Power Loss
at Rated Load 3.5 W
Rated Frequency
50/60 Hz
Rated Voltage
400 V AC500 V AC690 V AC800 V AC1000 V AC
Terminal Type
Bolt
Fuse Size
NH00NH000
Rated Conditional Short-Circuit Current (Inc)
50 kiloampere rms
Rated Operational Current AC-21B (Ie)
(690 V) 125 A
Rated Operational Current AC-22B (Ie)
(500 V) 160 A
Rated Operational Current AC-23B (le)
(400V) 125 A
Electrical Durability
200
Mechanical Durability
1400
Fuse System
DIN

Mechanical

Handle Type
Front Cover 3P
Mounting Type
Baseplate

Dimensions

Depth
90 mm
Height
187 mm
Weight
0.63 kg
Width
105 mm

Environmental

IP Rating
IP30

Standards and Approvals

Standards and Approvals
IEC60947-3GB/T14048.3
