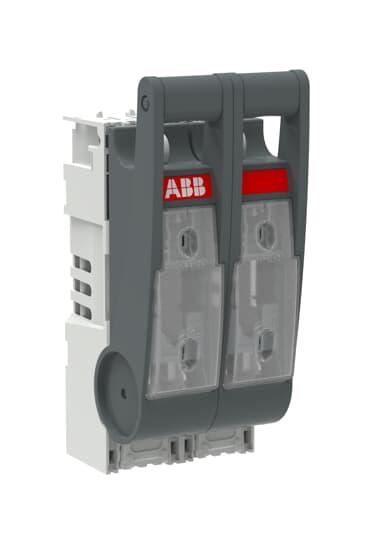

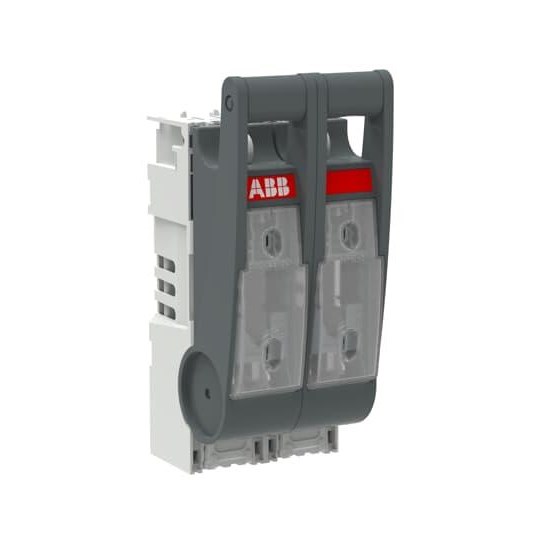

ABB XLP00-2P-4BC Disconnects Fuse 2-P 160A 500-690VAC Cable Clamp Terminal IP30 For: EV008979

Product Code: XLP00-2P-4BC

  • Handles up to 160 A current
  • Compact size: 40mm width
  • Supports voltages of 500-690 VAC
  • IP30 protection rating
  • Front-side control element
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
EasyLine XLP
Application
Fuse switch disconnection and protection in low-voltage distribution

Electrical

Power Loss
3.5W
Rated Current (In)
160A
Rated Frequency
50/60Hz
Rated Short Circuit Current
50kA rms
Rated Voltage (Ur)
690V AC
No. of Poles
2P

Mechanical

Mounting
Base mount
Size Code
NH00 / NH000
Connection/Termination
Lug terminals

Dimensions & Physical Data

Depth
88mm
Height
185mm
Weight
0.61kg
Width
80mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
