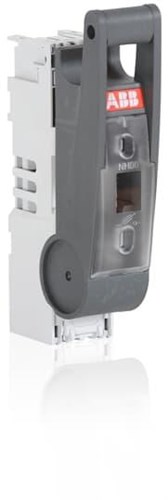

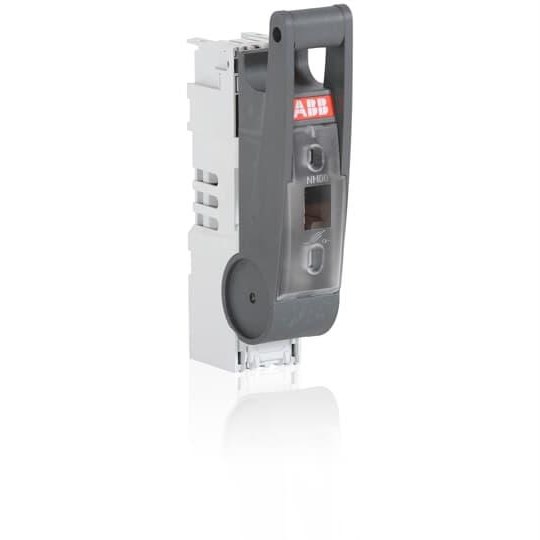

ABB XLP00-1P Disconnects Fuse 1-P 160A 500-690VAC Lug Terminal IP30 For: EV008979

Product Code: XLP00-1P

  • Rated current of 160 A for reliable performance
  • Compact size: 40 mm width, 88 mm height
  • High short circuit rating at 50 kA
  • Operates within 500-690 VAC range
  • IP30 protection for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch Disconnector
Brand
ABB
Series
EasyLine XLP
Application
Fuse switch disconnection and protection in low-voltage distribution

Electrical

Power Loss
3.5W
Rated Current (In)
160A
Rated Frequency
50/60Hz
Rated Short Circuit Current
50kA rms
Rated Voltage (Ur)
690V AC
No. of Poles
1P

Mechanical

Mounting
Base mount
Size Code
NH00 / NH000
Connection/Termination
Lug terminals

Dimensions & Physical Data

Depth
88mm
Height
185mm
Weight
0.24kg
Width
40mm

Environmental

IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
