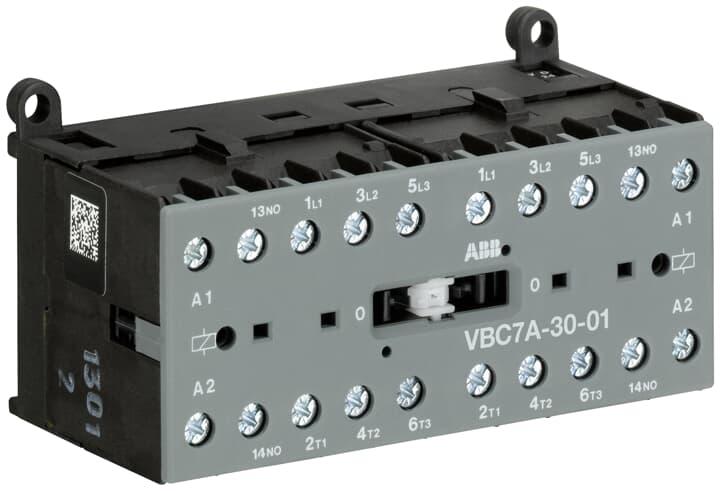

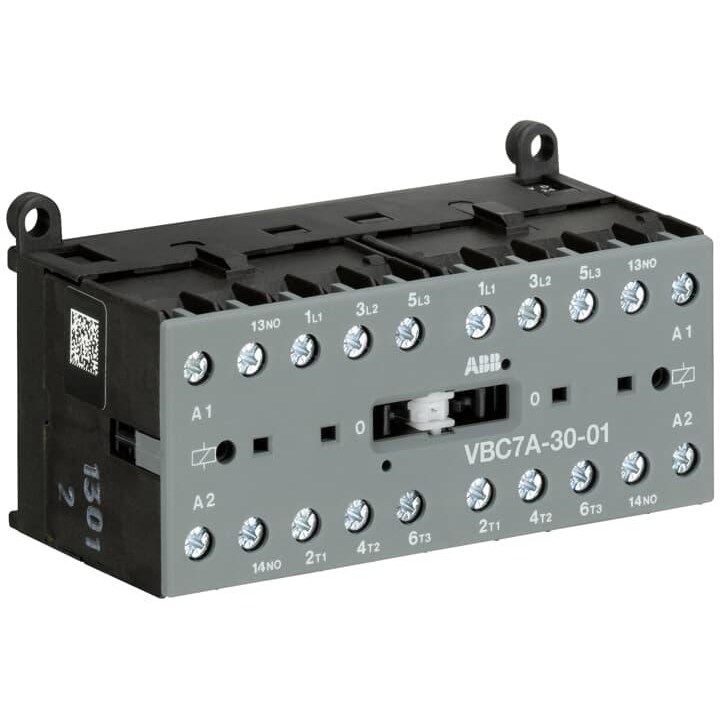

ABB VBC7A300101 Mini Contactor 3P 3NO 6A 4kW 24VAC Screw Rail Mount

Product Code: VBC7A300101

  • Compact mini contactor with rail mounting
  • Handles up to 6 A at 24 VAC
  • Durable IP20 protection rating
  • Screw terminals for secure connections
  • Operates in temps from -20 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24V DC
Rated Operational Current AC-1 <= 440V (Ie)
20A
Rated Operational Current AC-1 <= 690V (Ie)
0.25
Rated Operational Current AC-3 400V (Ie)
0
Rated Operational Current AC-3 690V (Ie)
3.5A
Rated Operational Power AC-3 400V (Pe)
5.5kW
Rated Operational Power AC-3 690V (Pe)
3kW
Rated Frequency
DC; 50/60Hz main circuit
No. of Poles
3P

Dimensions & Physical Data

Depth
46.7mm
Height
57.5mm
Weight
0.355kg
Width
96.2mm

Environmental

Ambient Temperature
-20°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)
