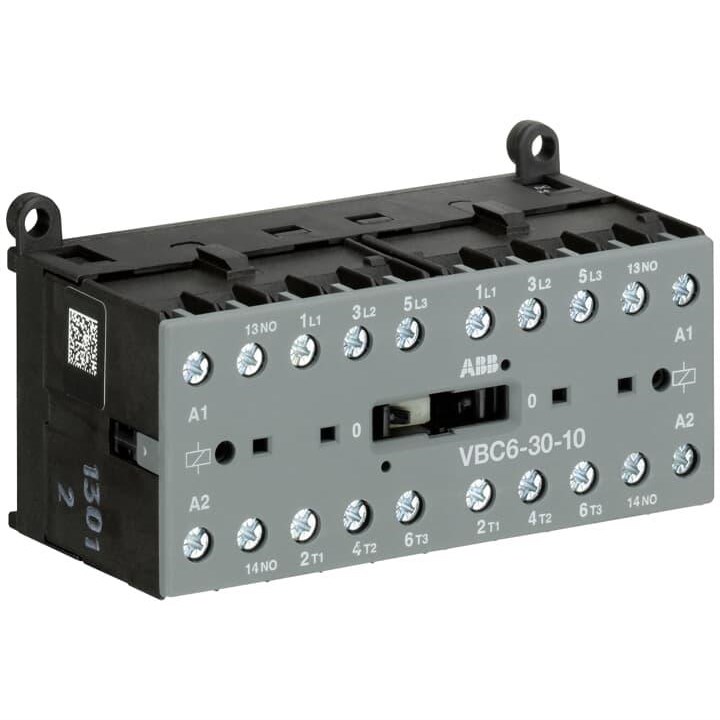

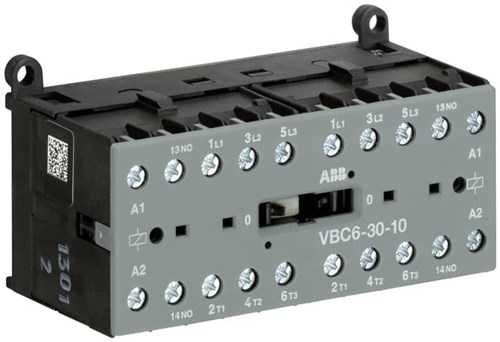

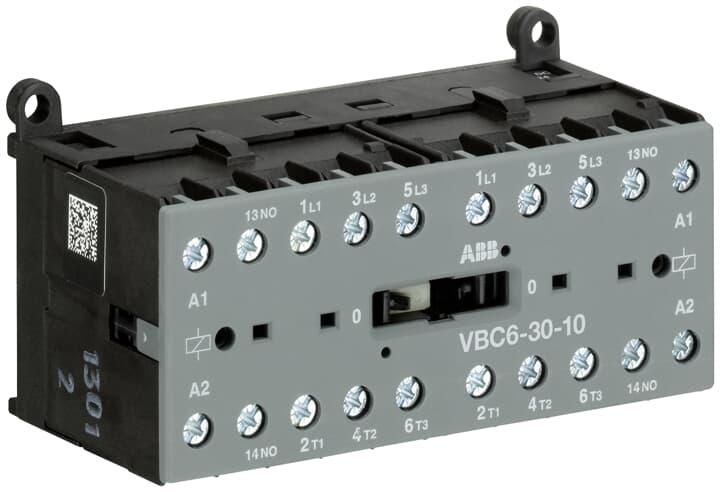

ABB VBC6301001 Mini Reversing Contactor 20A 4kW 24VDC Screw DIN Rail Wall Mount

Product Code: VBC6301001

  • Compact mini contactor for space-saving installations
  • Operates at 24 VDC with a current rating of 20 A
  • Suitable for both DIN rail and wall mounting
  • IP20 protection with screw terminals for secure connections
  • Efficient power usage with only 2 W power loss
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24V DC
Rated Operational Current AC-1 <= 440V (Ie)
20A
Rated Operational Current AC-1 <= 690V (Ie)
0.25
Rated Operational Current AC-3 400V (Ie)
0.375
Rated Operational Current AC-3 690V (Ie)
3.5A
Rated Operational Power AC-3 400V (Pe)
4kW
Rated Operational Power AC-3 690V (Pe)
3kW
Rated Frequency
DC; 50/60Hz main circuit
No. of Poles
3P

Dimensions & Physical Data

Depth
46.7mm
Height
57.5mm
Weight
0.355kg
Width
96.2mm

Environmental

Ambient Temperature
-20°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)
