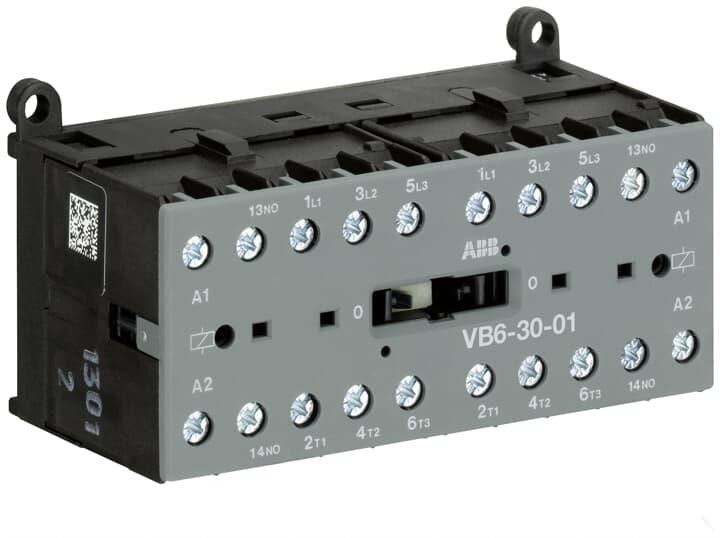

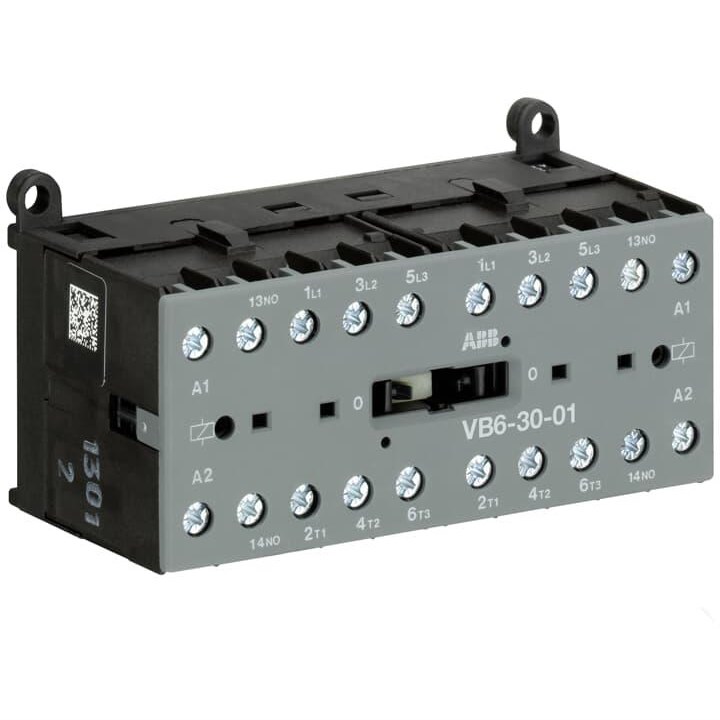

ABB VB6300180 Mini Contactor 3P 3NO 6A 4kW 220-240VAC Screw Rail Mount

Product Code: VB6300180

  • Mini Contactor for 220-240 VAC systems
  • Handles up to 6 A current with ease
  • Compact design: 96.2x57.5x46.7 mm
  • IP20 protection, rail mountable
  • Meets IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
220V to 240V AC
Rated Operational Current AC-1 <= 440V (Ie)
20A
Rated Operational Current AC-1 <= 690V (Ie)
0.25
Rated Operational Current AC-3 400V (Ie)
0.375
Rated Operational Current AC-3 690V (Ie)
3.5A
Rated Operational Power AC-3 400V (Pe)
4kW
Rated Operational Power AC-3 690V (Pe)
3kW
Rated Frequency
50/60Hz
No. of Poles
3P

Dimensions & Physical Data

Depth
46.7mm
Height
57.5mm
Weight
0.355kg
Width
96.2mm

Environmental

Ambient Temperature
-20°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)

Documents

IPD Product Catalogue V17
