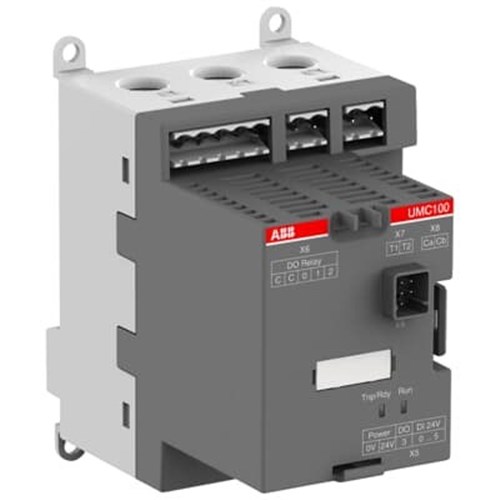

ABB UMC100.3UC Motor Controller 3P 107mm L Cable 50/60Hz 110-240VAC/DC

Product Code: UMC100.3UC

  • Wide voltage range: 110-240 VAC/VDC
  • High current capacity: up to 63 A
  • Multiple trip classes for flexibility
  • Compact size: 70 mm width, 106 mm height
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Motor Controller
Brand
ABB

Electrical

No. of Poles (NO/NC)
3P
Rated Control Supply Voltage (Us)
110/240 V AC/DC
Rated Operational Current AC-15 (Ie)
1.5 A at 240 V AC
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
107 mm
Height
106 mm
Weight
0.315 kg
Width
70 mm

Environmental

Operating Temperature
0 ... +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; IEC/EN 60947-8; CE; cULus

Documents

IPD Product Catalogue V17
