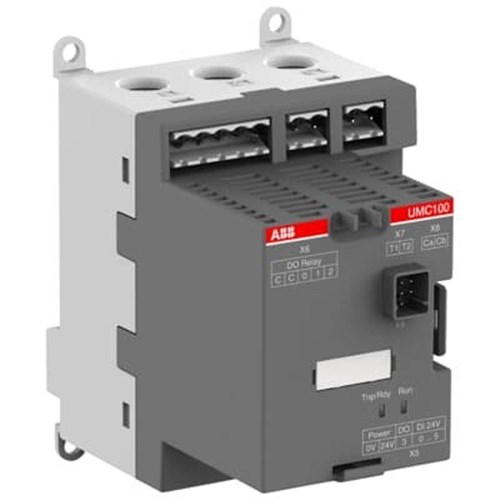

ABB UMC100.3DC Motor Controller 3P 107mm L Cable 50/60Hz 24VDC

Product Code: UMC100.3DC

  • Rated for 24 VDC and 63 A
  • Wide setting range: 0.24-63 A
  • IP20 protection rating
  • Compact size: 70 mm width, 106 mm height
  • Compliant with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Motor Controller
Brand
ABB

Electrical

No. of Poles (NO/NC)
3P
Rated Control Supply Voltage (Us)
24 V DC
Rated Operational Current AC-15 (Ie)
1.5 A at 240 V AC
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
107 mm
Height
106 mm
Weight
0.275 kg
Width
70 mm

Environmental

Operating Temperature
0 ... +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; IEC/EN 60947-8; CE; cULus

Documents

IPD Product Catalogue V17
