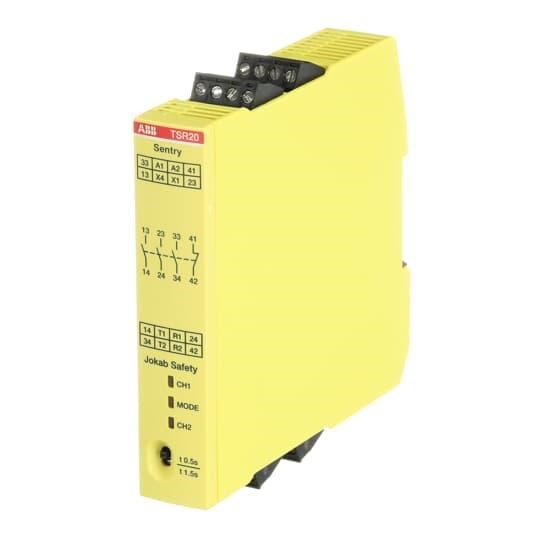

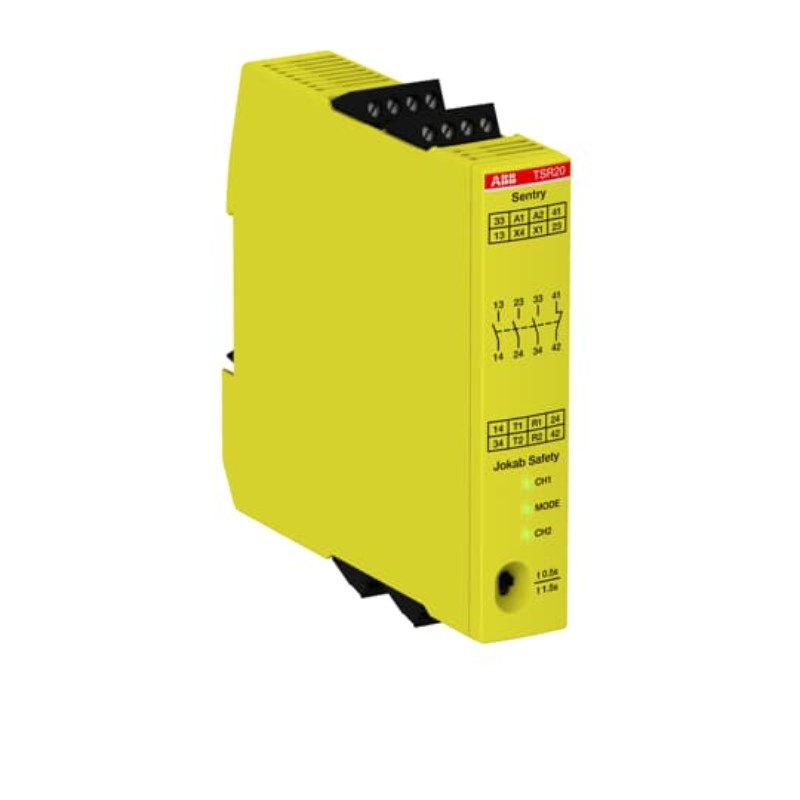

ABB TSR20 Safety Relay 24VDC 3NO+1NC

Product Code: TSR20

  • Operates at 24 VDC with 5 A rated current
  • Features 3NO+1NC contact configuration
  • Designed for DIN rail mounting
  • Compact size: 22.5 mm width, 120 mm height
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Expansion Timer
Brand
ABB
Series
TSR

Electrical

Supply Voltage
24V DC

Mechanical

Housing Colour
Yellow
Housing Material
PA66 with 25% fiberglass (UL94 V0)

Dimensions & Physical Data

Depth
120mm
Height
120mm
Weight
0.207kg
Width
22.5mm

Environmental

Operating Temperature
-25°C to 65°C
IP Rating
IP20

Safety, Standards & Compliance

Safety Category
Cat. 4
Safety Integrity Level
SIL 3
Performance Level
PL e

Documents

IPD Product Catalogue V17
