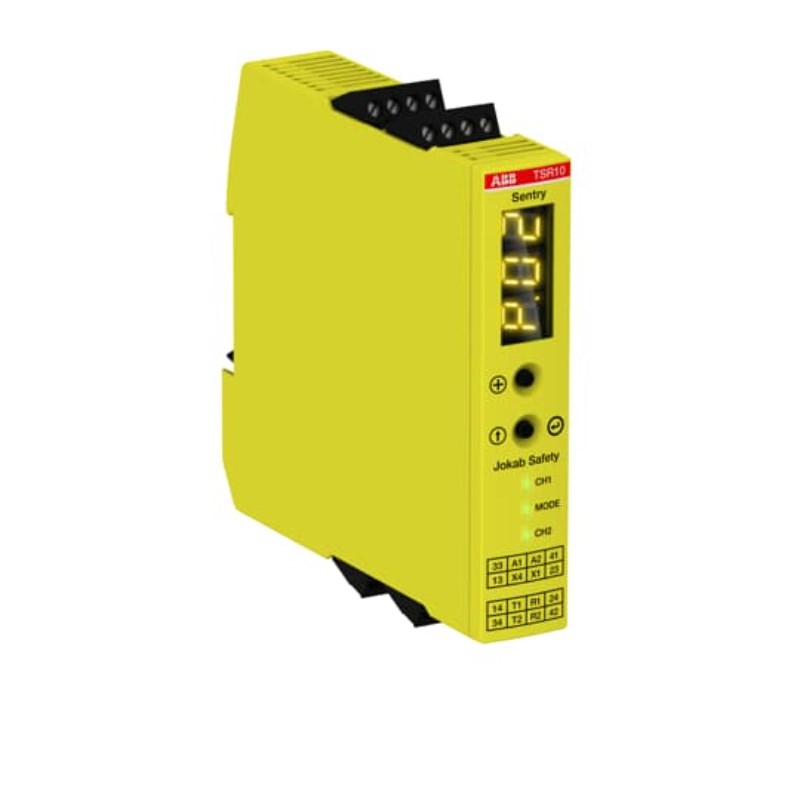

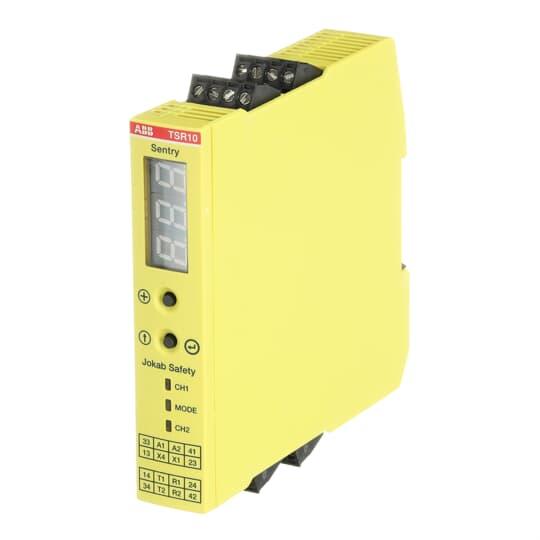

ABB TSR10 Safety Relay 24VDC 3NO+1NC

Product Code: TSR10

  • 24 VDC rated voltage for reliable operation
  • Handles up to 5 A current
  • 3NO+1NC contact configuration
  • Easy DIN rail mounting
  • Compact size: 22.5 mm width, IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Relay
Brand
ABB
Series
Sentry (TSR10)

Electrical

Switching Current
5A to 6A
Switching Voltage
250V AC
Supply Voltage
24V DC

Mechanical

Housing Colour
Yellow

Dimensions & Physical Data

Depth
120mm
Height
120mm
Weight
0.213kg
Width
22.5mm

Environmental

IP Rating
IP20
Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Safe Relay Outputs, Stop 0
3 NO + 1 NC (delayed)
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes (1/2 channel + OSSD)
Performance Level
Up to e
