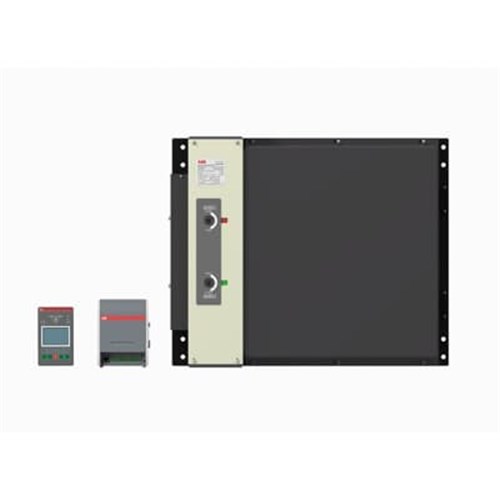

ABB TRUONE DELAYED 4000A 3P 380-415VAC LEV4 OXB4000G3X4KM

Product Code: OXB4000G3X4KM

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
TruONE

Electrical

Position of Line Terminals
Source 1 and Source 2 on top and bottom - Load in middle
Rated Operating Voltage
380V to 415V AC
Power Loss
200W
Rated Current (In)
4000A
Rated Frequency
50/60Hz
Transition Type
Delayed (I-O-II Three Positions)
No. of Poles
3P

Dimensions & Physical Data

Weight
203kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-6, UL 1008

Documents

IPD Product Catalogue V17
