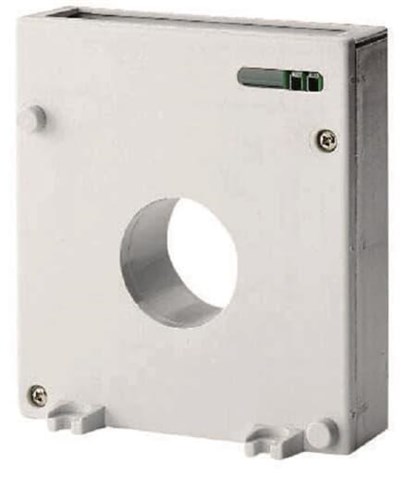

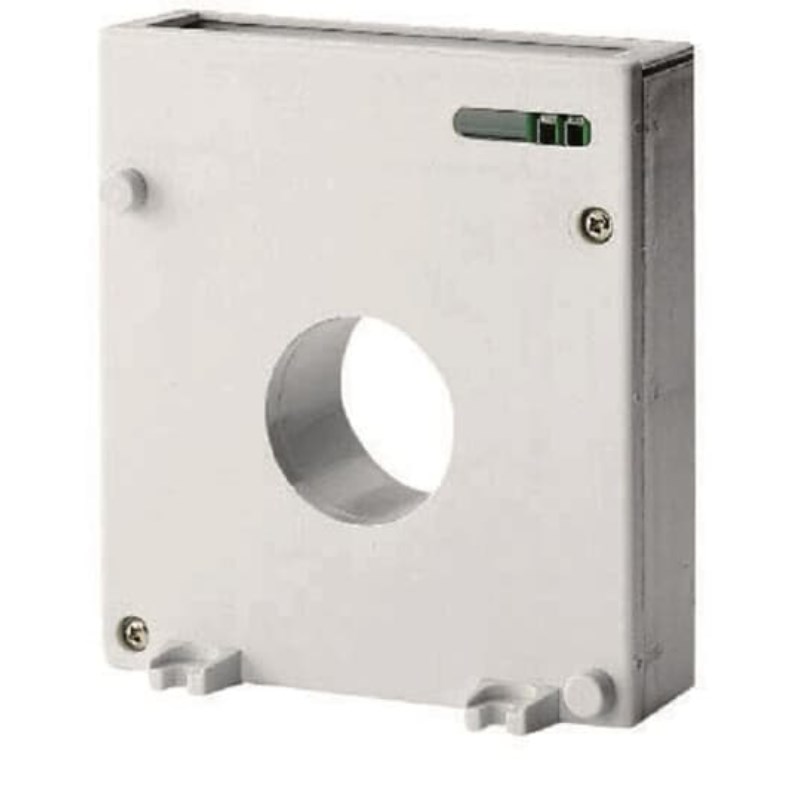

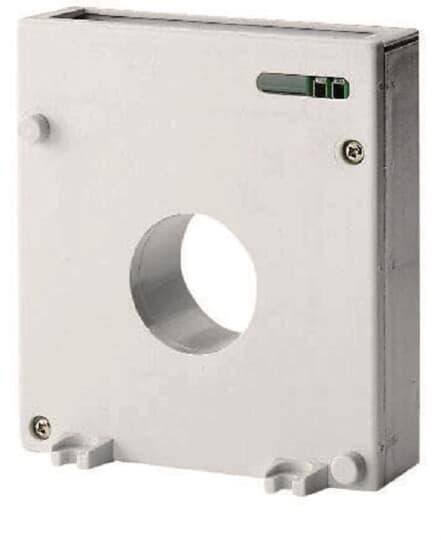

ABB TRM Residual Current Monitor 200A Primary 5A Secondary 29mm IP20

Product Code: TRM

  • Suitable for commercial & industrial use
  • Compact size: 58mm width, 85mm height
  • Rated insulation voltage of 1000V
  • IP20 protection rating
  • Aperture of 29mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Toroidal Transformer
Brand
ABB
Series
TR

Electrical

Rated Current (In)
65A
Rated Frequency
50Hz to 400Hz
Terminal Type
Screw terminal boards
Rated Residual Current
30mA (minimum measurable)

Dimensions & Physical Data

Depth
58mm
Height
85mm
Weight
0.13kg
Width
58mm
Width in No. of Modular Spacing
3

Environmental

Storage Temperature
-20°C to 80°C
Operating Temperature
-10°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CEI EN 50081-2; CEI EN 50082-2; CEI 41.1
