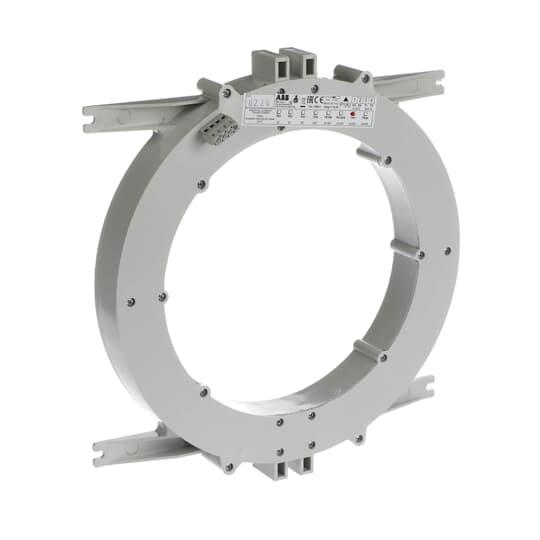

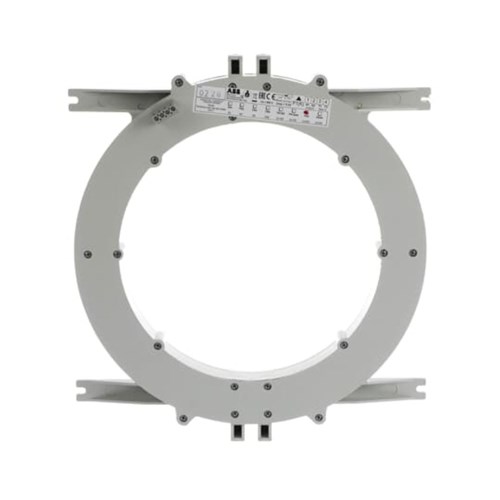

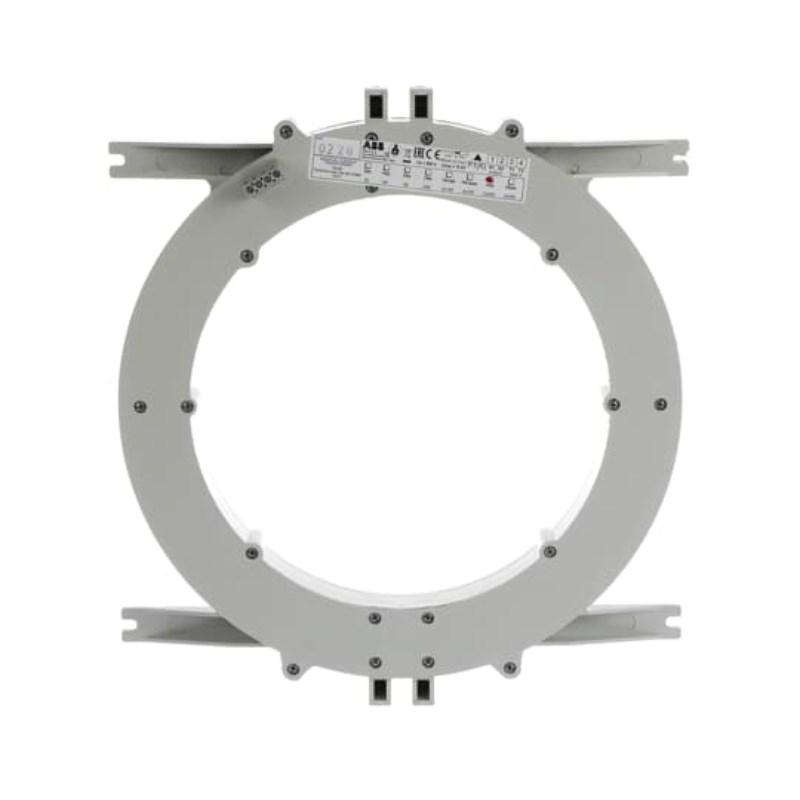

ABB TR5 Toroidal Transformer 16A Primary 8A Secondary 210mm

Product Code: TR5

  • Toroidal transformer with 200 VA rated power
  • Supports 16 A and 8 A current ratings
  • Rated insulation voltage of 1000 V
  • Compact design: 290x310x55 mm dimensions
  • IP20 protection for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Toroidal Transformer
Brand
ABB
Series
TR

Electrical

Rated Current (In)
630A
Rated Frequency
50Hz to 400Hz
Terminal Type
Screw terminal boards
Rated Residual Current
300mA (minimum measurable)

Dimensions & Physical Data

Depth
55mm
Height
310mm
Weight
1.05kg
Width
290mm

Environmental

Storage Temperature
-20°C to 80°C
Operating Temperature
-10°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CEI EN 50081-2; CEI EN 50082-2; CEI 41.1
